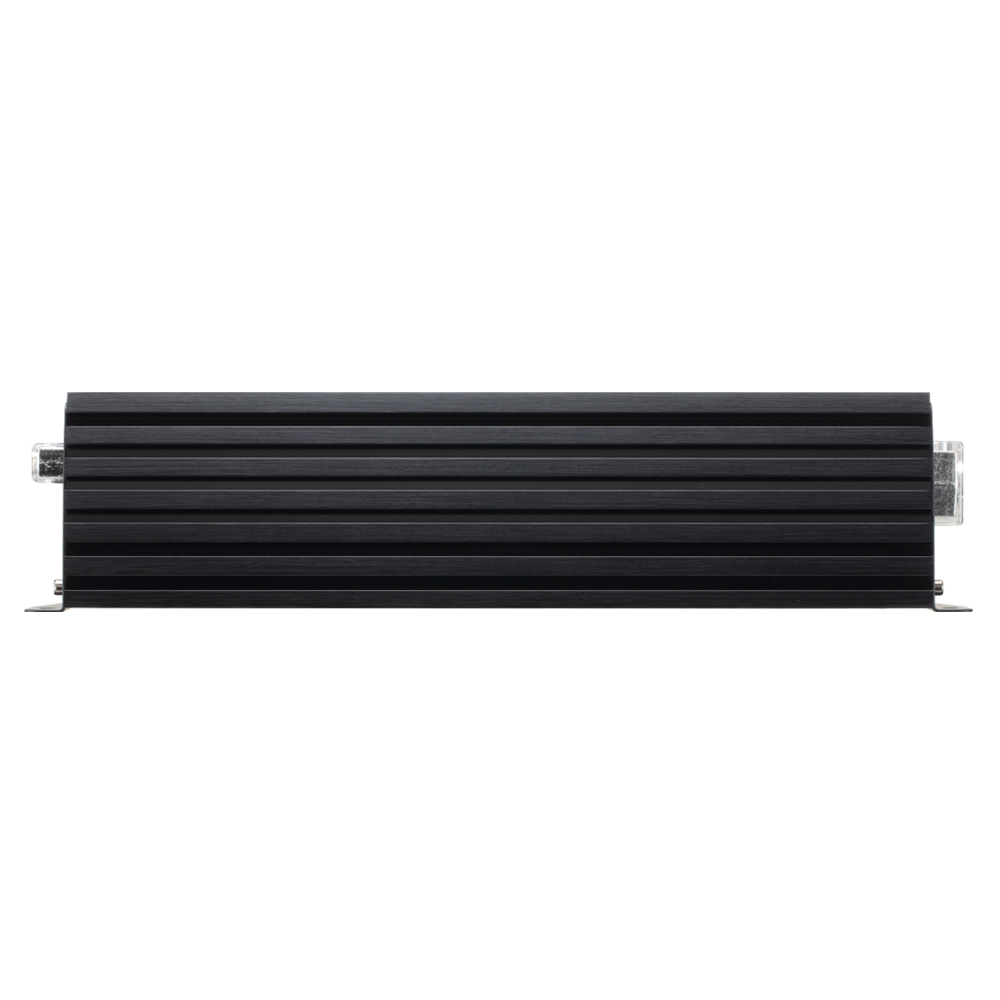

Team 1500/x2D Class D 2/1 Channel Full Range Amplifier 3000w RMS


World RRP: £326.95

Category: AMPLIFIERS

Product code: Team1500/x2D

These are no details spared high performance amplifiers using transformer class technology allowing for a compact design while offering huge power. Featuring a sleek satin finish the new Team Series delivers ultimate performance in an unbelievably compact package. Do not let the size of these amplifiers fool you – the current requirements for this level of output are considerable. Installation using the exactly correct cables, batteries and alternator is essential. The amplifiers offer wide crossover adjustments and will accommodate high power RCA and main voltage input. Top quality RCA terminals, power connections and speaker terminal blocks are standard, as is individual factory burn in per amplifier and QC stamp with serial number. The amplifiers are supplied in high quality packaging for protection, and come with printed instructions and comprehensive data sheets as well as having additional important information printed on the body of the units. Finally, output power is rated correctly - what you read is what you get - the Team Series offers stellar performance at an affordable price. This is a full range amplifier, ideal for either subwoofer or speaker use.

Technical Highlights


  • Class D Transformer - Ultimate Power Full Range 2/1 Channel Amplifier
  • Power Output 2x1500W RMS @ 1 Ohm Load
  • Power Output 2x850W RMS @ 2 Ohm Load
  • Power Output 2x420W RMS @ 4 Ohm Load
  • 6.5V Stable RCA Inputs
  • 50>20000Hz LPF / 15>1000Hz HPF Crossovers
  • Minimum Power Supply 225A via 1x 0AWG Input
  • 15>20000Hz Response / 85dB Signal To Noise Ratio
  • 16.2V Capable Power Input
  • Included Bass Remote & Cable
Technical Highlights

Series


Team

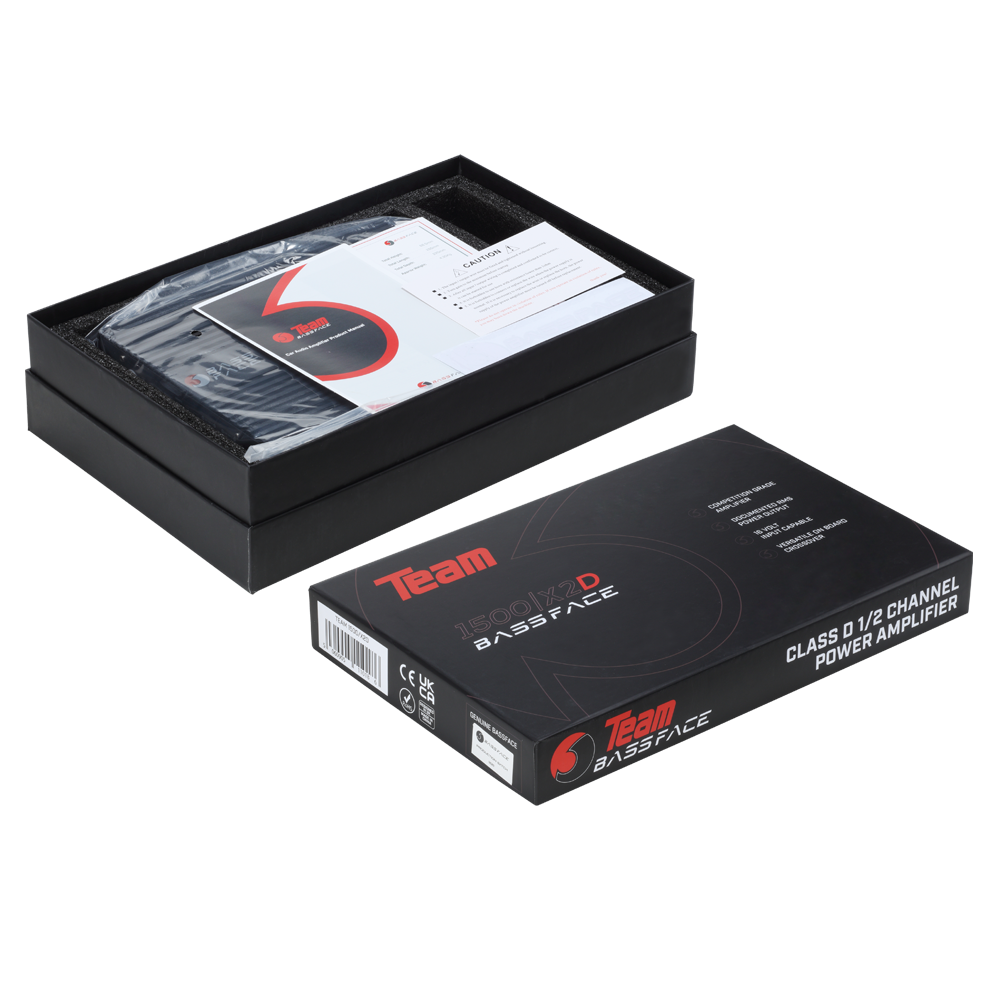

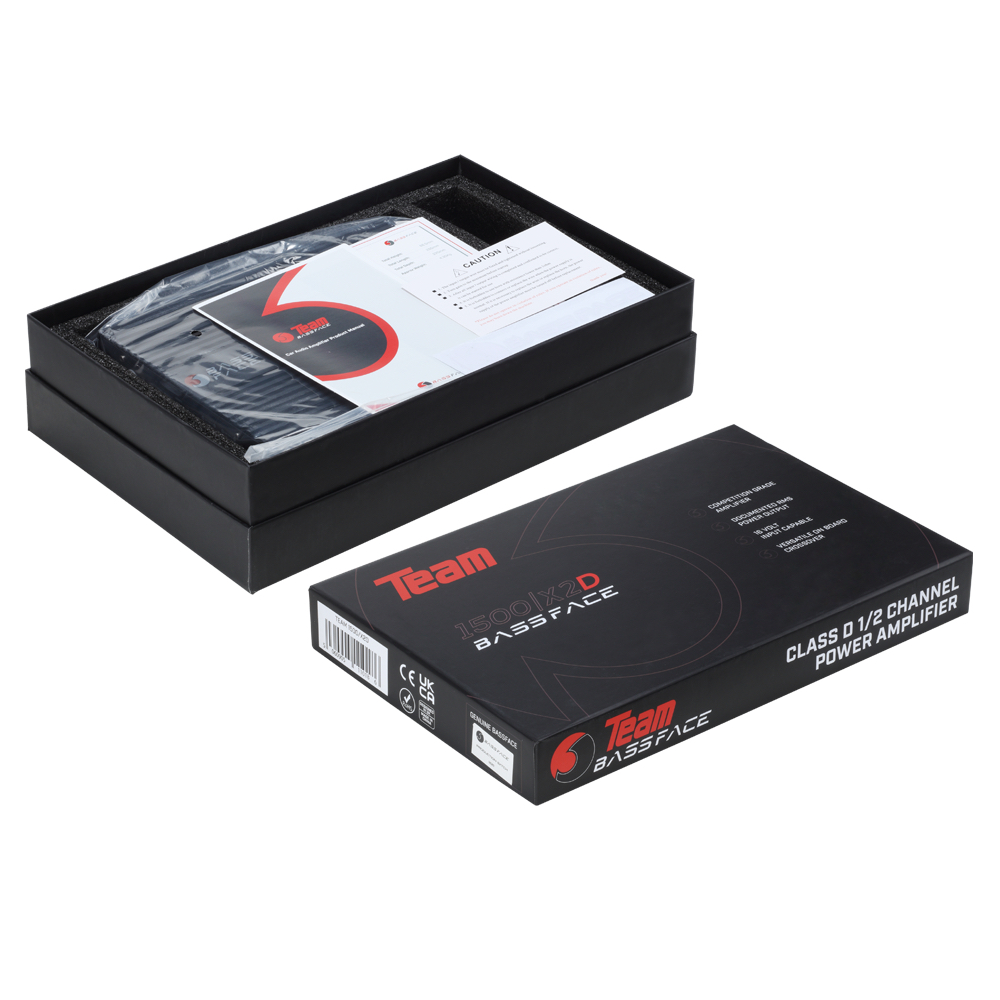

What's In The Box?


What's In The Box?
  • 1 x Amplifier

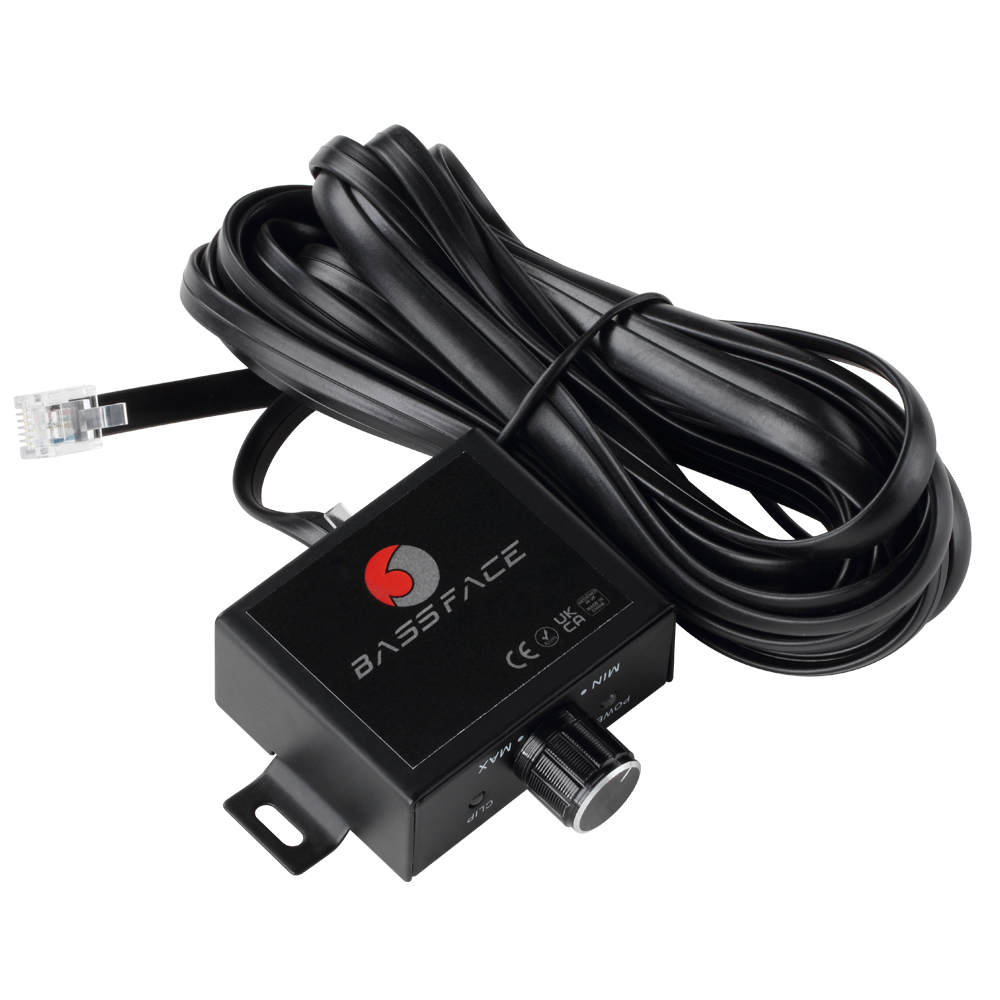

  • 1 x Bass Remote Control
  • 1 x Hardware Pack
  • 1 x Bassface Sticker
  • 1 x Documentation Set

Version History


Upgraded transistors incorporated from Q2 2023 to improve stability. Some 2022 stock was re-worked by the factory to incorporate these upgrades, so it is not possible to identify exactly which pre Q2 2023 units do or do not have the improvements. Since 07/08/23 an error in the printed datasheet that showed the bass boost frequency as adjustable from 0-50Hz has been corrected in the online datasheet and website data.

Key Facts


Product Category Amplifiers
Version 1.5
Series Team
First Added 01/12/2021
Last Modified 26/01/2024
Barcode 5060905110186
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 4122
Product Height (mm) 66.5
Product Length (mm) 265
Product Width (mm) 225
Complete Product Pack Weight (g) 4580
Operating Temperature (Degrees Celsius) 0-50
Weatherproof Rating In-Car Only
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Amplifier Data


Genuine Useable RMS Power, 4Ohm (Watts), < 1%THD, 14v 420x2
Genuine Useable RMS Power, 2Ohm (Watts), < 1%THD, 14v 850x2
Genuine Useable RMS Power, 1Ohm (Watts), < 1%THD, 14v 1500x2
Genuine Useable RMS Power, 4Ohm Bridge (Watts), < 1%THD, 14v 1500x1
Genuine Useable RMS Power, 2Ohm Bridge (Watts), < 1%THD, 14v 3000x1
Frequency Response (Hz) 15>20000
Signal To Noise Ratio (db) 85
LPF (Hz) 50>20000
HPF (Hz) 15>1000
Bass Boost (Db) 0>12
Boost Frequency (Hz) 45
Audio Signal Input Voltage (V) 0.22>6.5
LPF Slope (Db/Oct) 12
HPF Slope (Db/Oct) 12
Amplifier Topology Class D Transformer
Maximum Input Voltage (V) 16.2
Fuse Rating (Amps) Unfused
Minimum Recommend Final Load Per Channel (Ohms) 1 Stereo / 2 Mono
Input Impedance (KOhms) 20
Channel Separation (Db) 45
