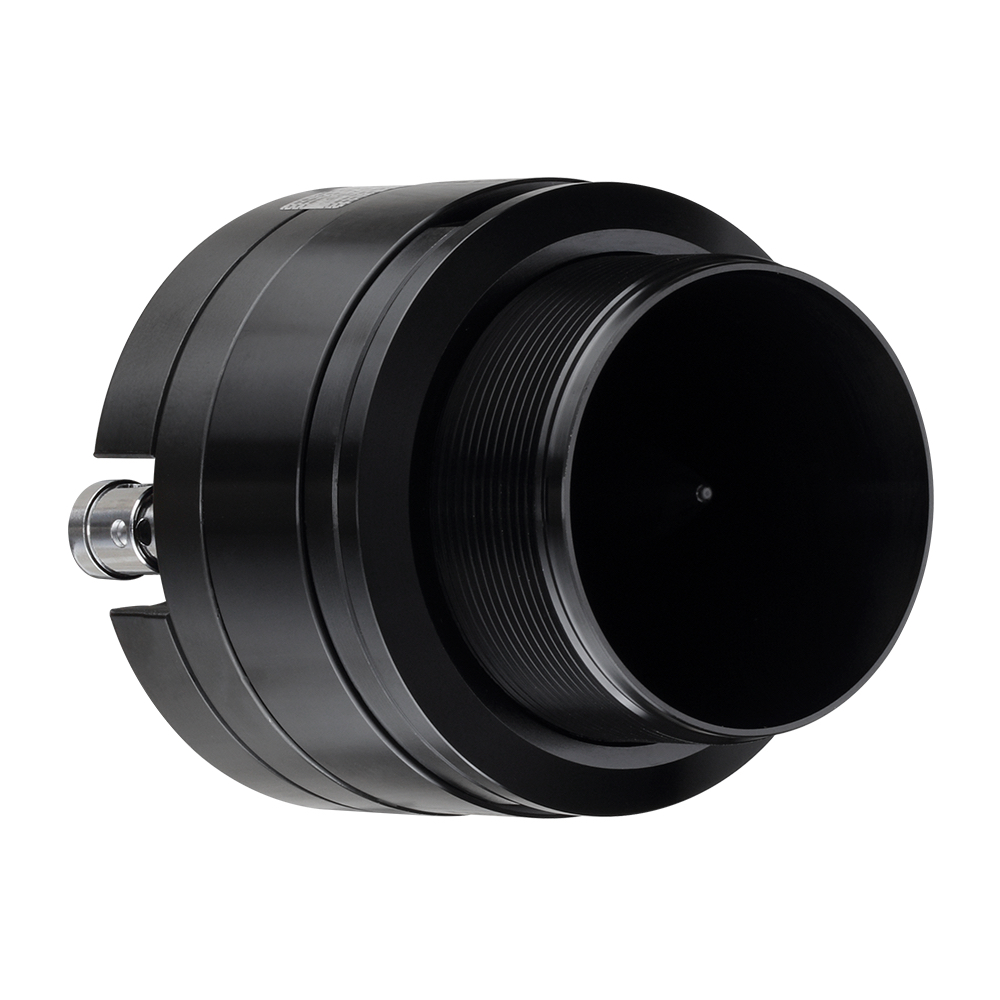

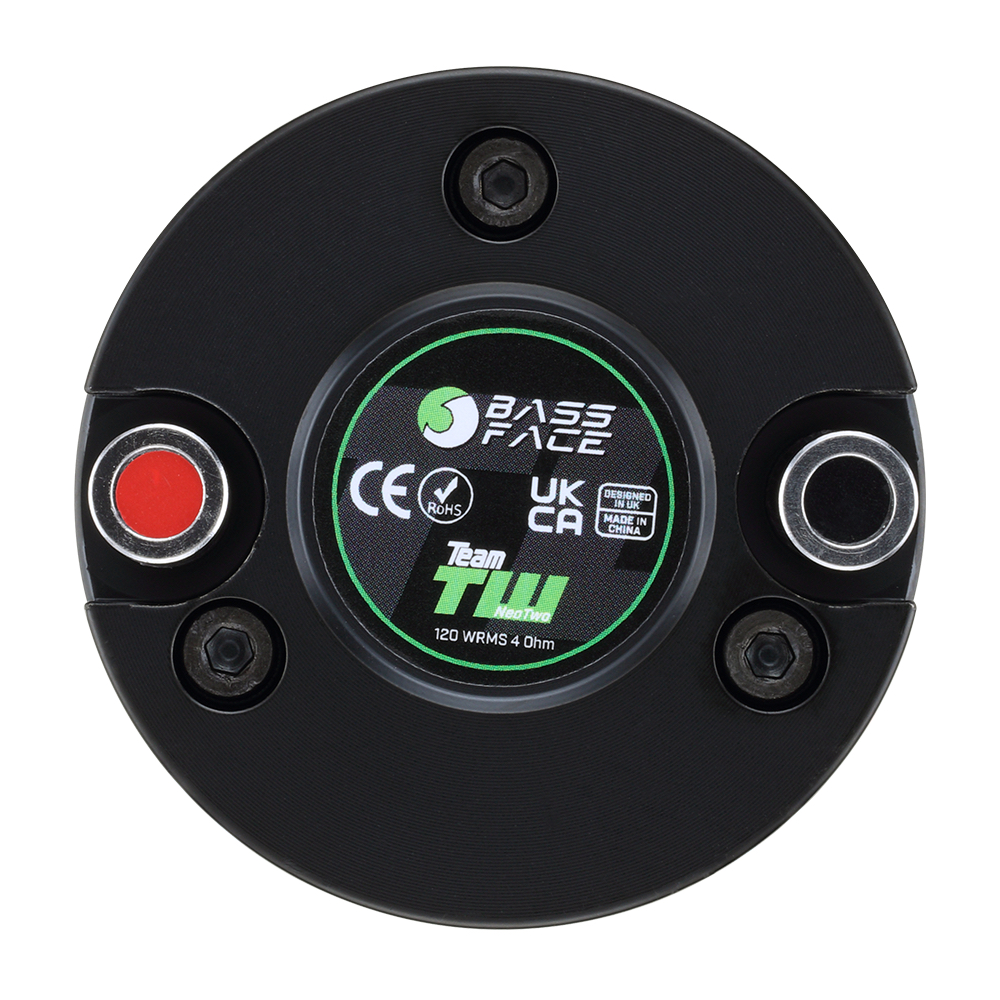

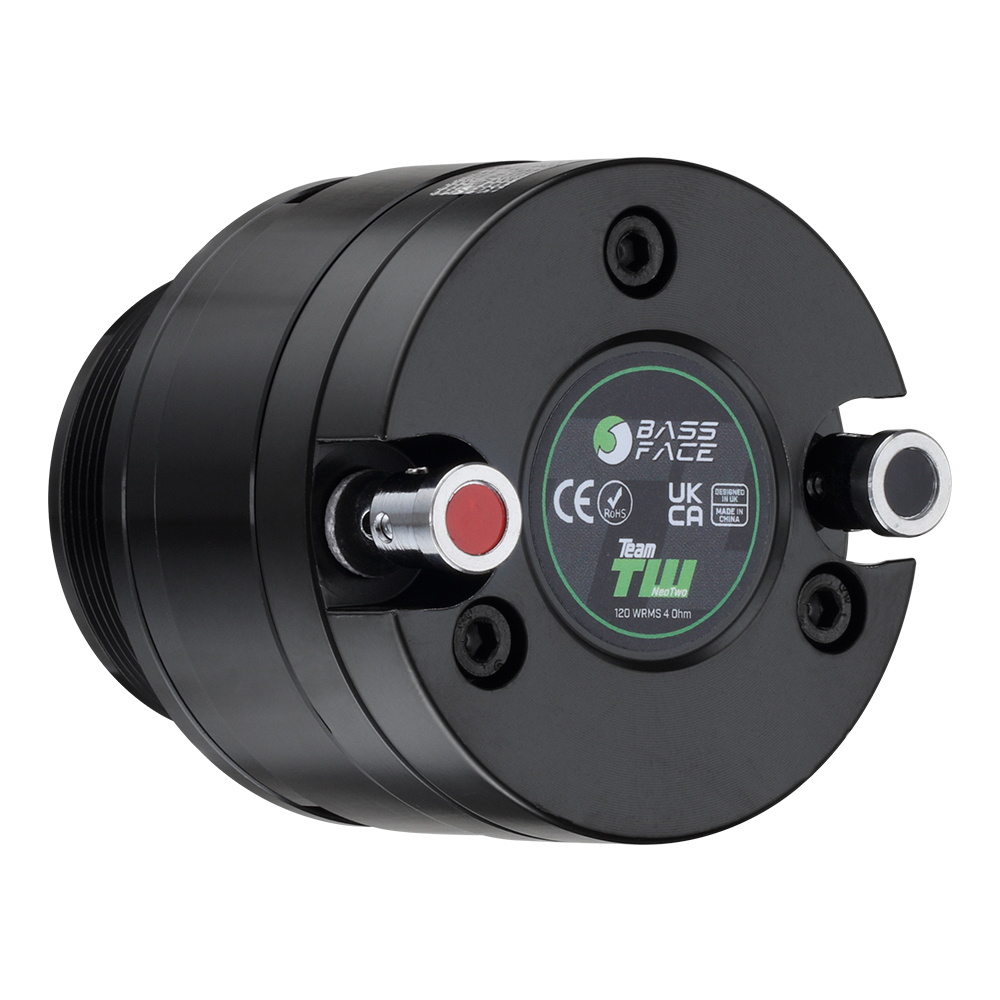

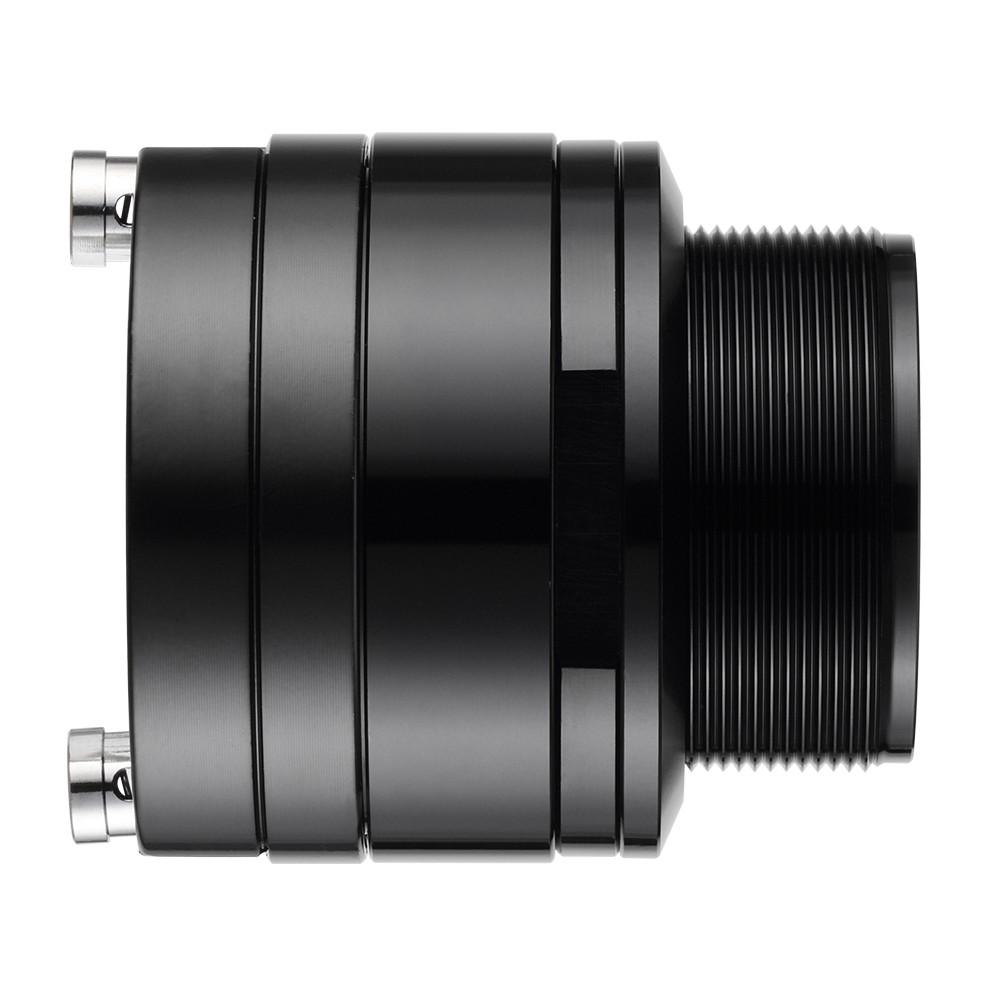

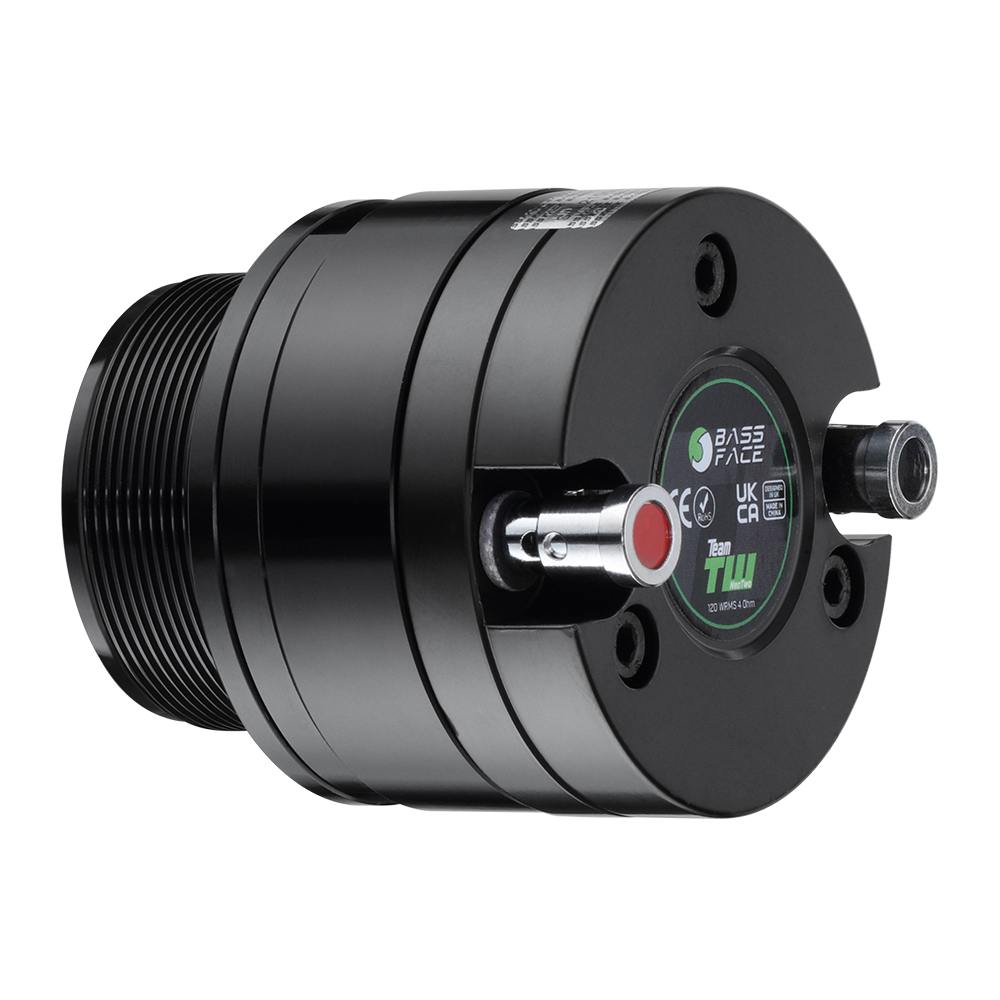

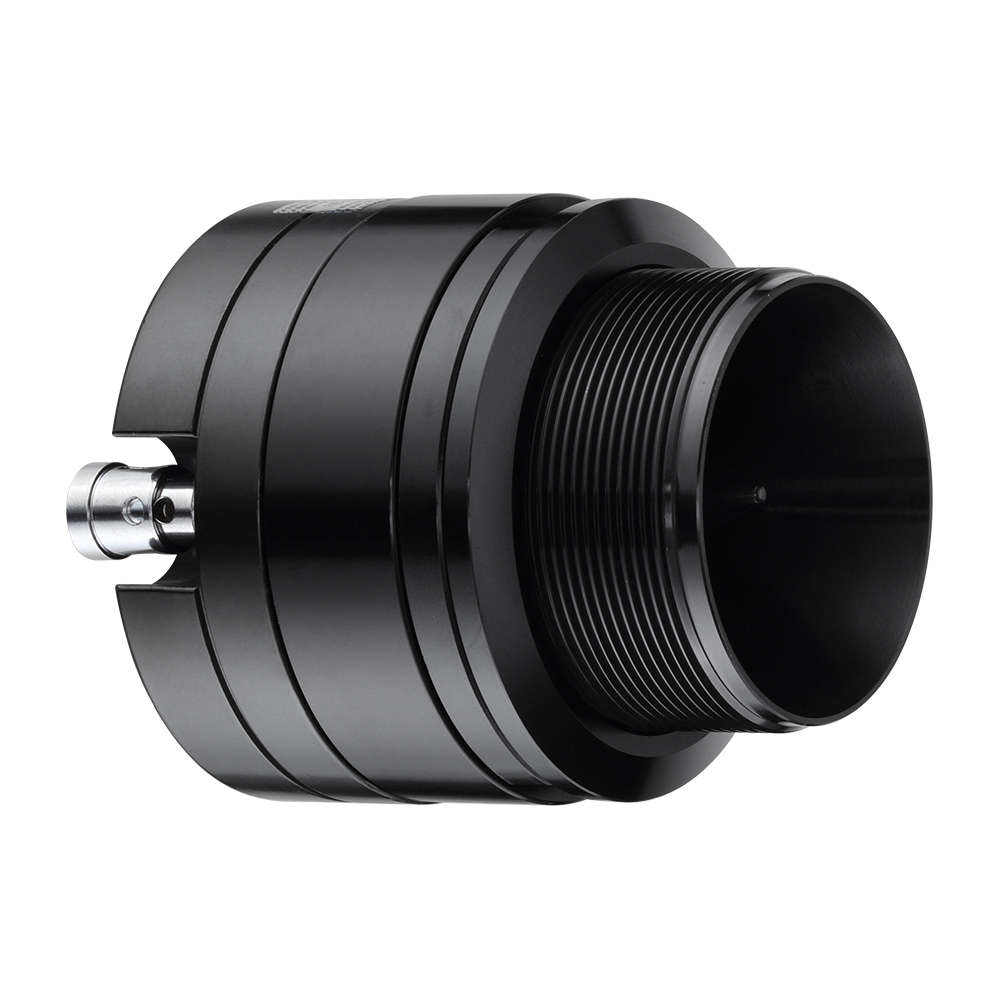

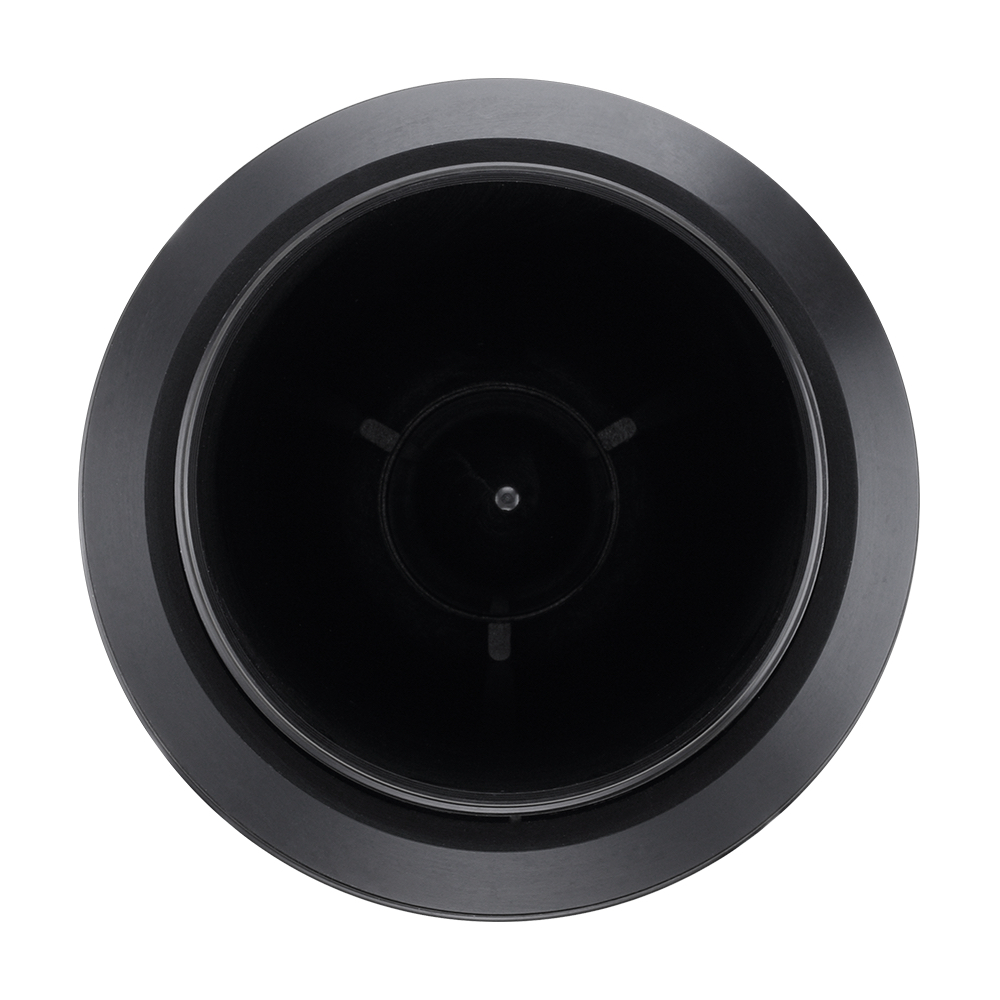

Team TW/NeoTwo 4Ohm 120w RMS Sound Quality Neodymium Bullet Tweeter (Single)


World RRP: £42.95

Category: Tweeters & Horns

Product code: TeamTW/NeoTwo

Super high performance neodymium magnet tweeter, in a custom made and extremely high quality machined body. The NeoTwo delivers perfect sound quality whilst still packing a significant punch.

Technical Highlights


  • Tremendous Sensitivity & Range, 120W RMS Power Handling Each Driver
  • Spade Terminals, 50mm Mount Depth, 58mm Overall Diameter
  • Large 25.5mm (1") 4 Ohm VC With 100db dB/1Wm Sensitivity
  • Frequency Range 3000Hz > 25000Hz, Aluminium Diaphragm
  • Ultimate Performance N38 Neodyminum Magnet

Series


Team

What's In The Box?


  • 1 x Tweeter
  • 1 x Data Sheet
  • 1 x Bassface Sticker
What's In The Box?

Version History


Brand new model launched Q2 2022 in Jiaxing.

Key Facts


Product Category Tweeters & Horns
Version 1
Series Team
First Added 13/09/2021
Last Modified 19/10/2023
Barcode 5060905110520
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 500
Product Height (mm) 67.7
Product Length (mm) 58
Product Width (mm) 58
Complete Product Pack Weight (g) 600
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Tweeter Data


Voice Coil Diameter (mm) 25.4
Overall Depth (mm) 67.7
Mounting Depth (mm) 50
Overall Diameter (mm) 58
Magnet Diameter (mm) 24
Installation Cut-out Diameter (mm) 40
Magnet Weight (Oz) 0.25
Magnet Type N38
System Maximum Power (Watts) (Using Pair Of Tweeters Not Necessarily Included) 480
System Maximum Power (Watts) (Single Tweeter) 240
System RMS (Watts) (Single Tweeter, 4Khz/12DB Oct X Over) 120
Frequency Response (Hz) 3000>25000
Impedance (Ohm) 4
Sensitivity (db/1Wm) 100
