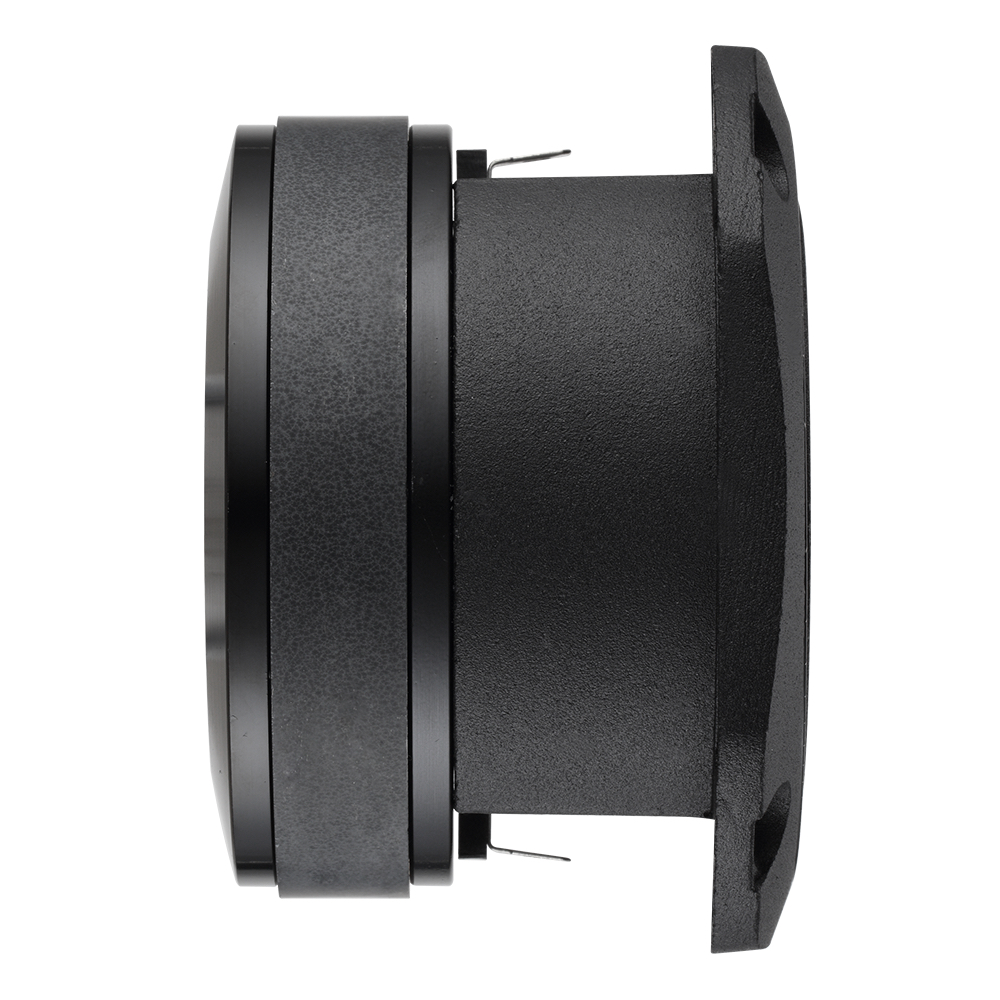

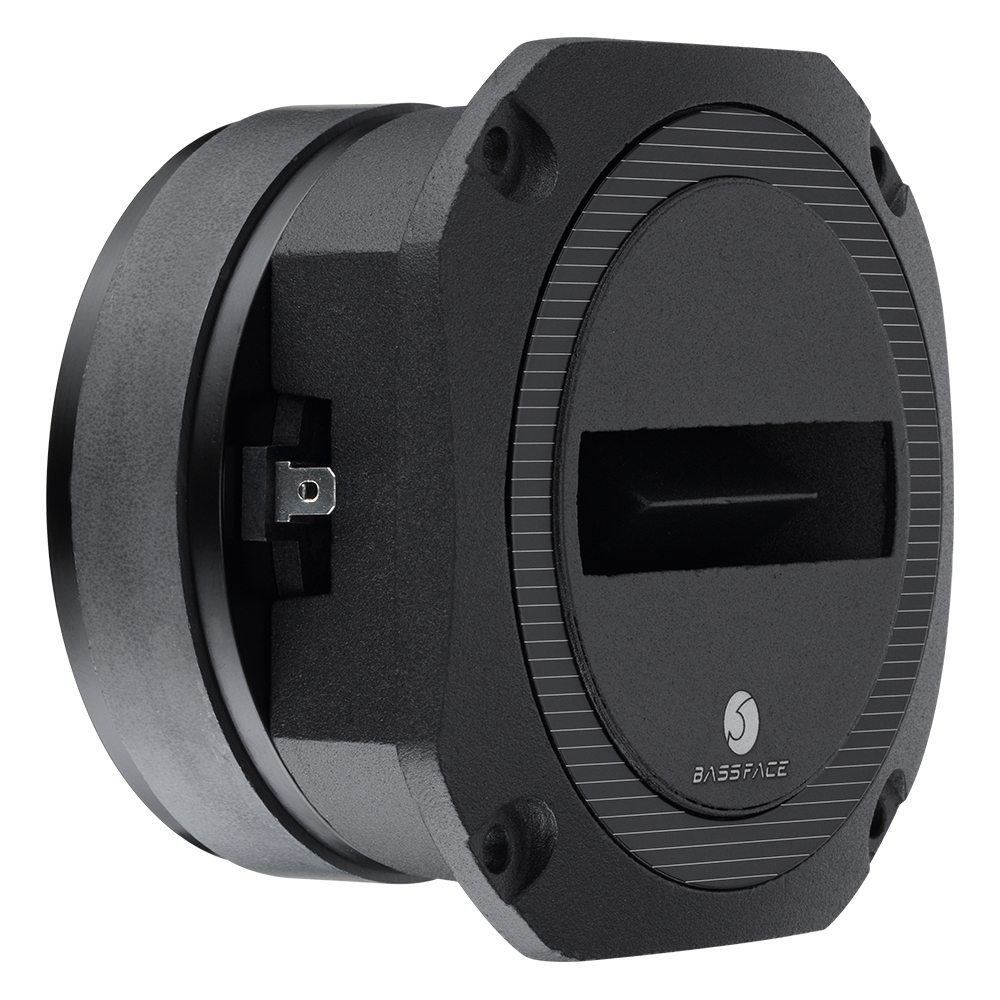

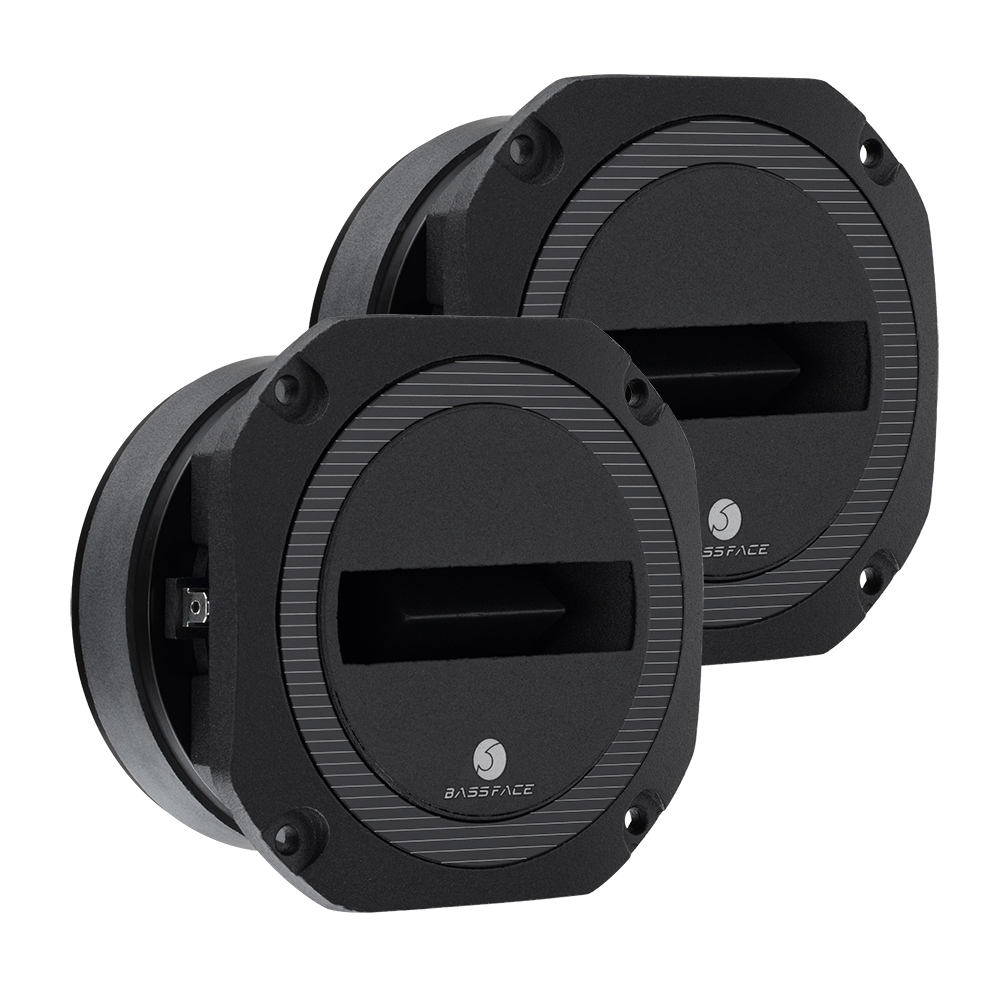

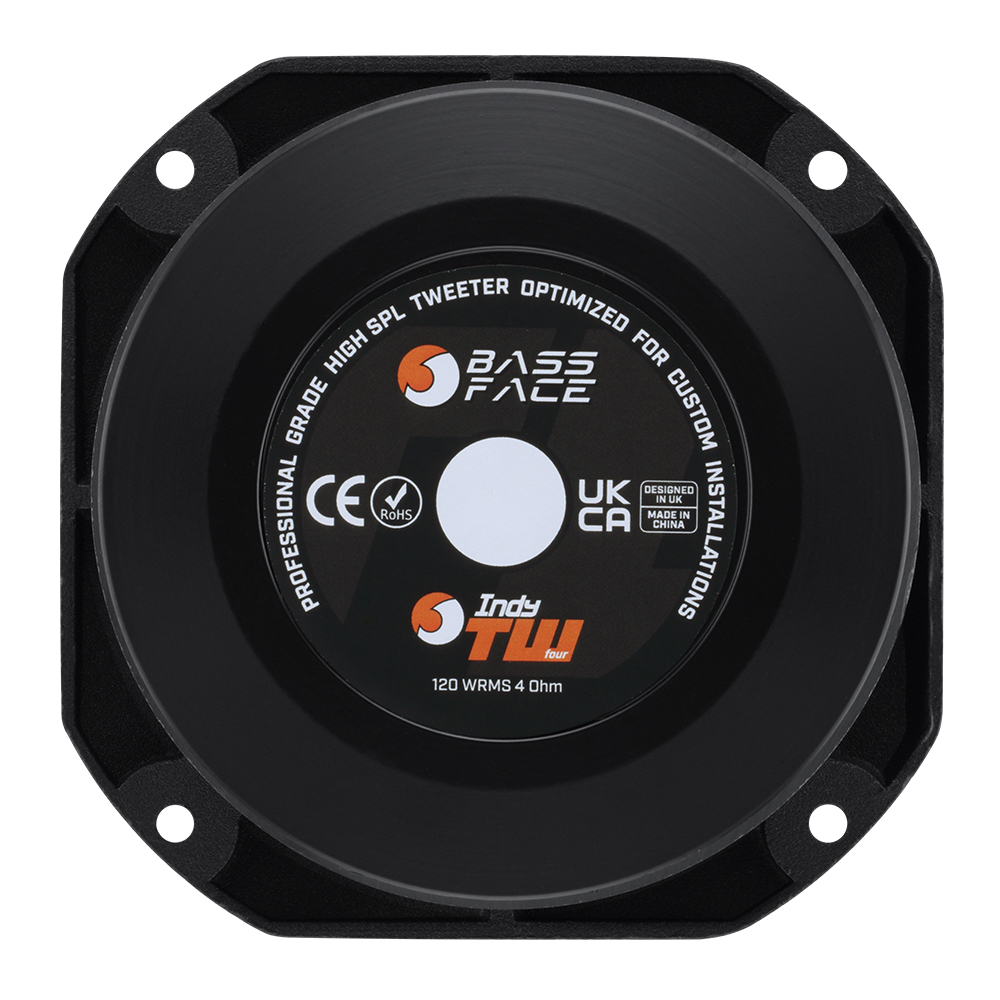

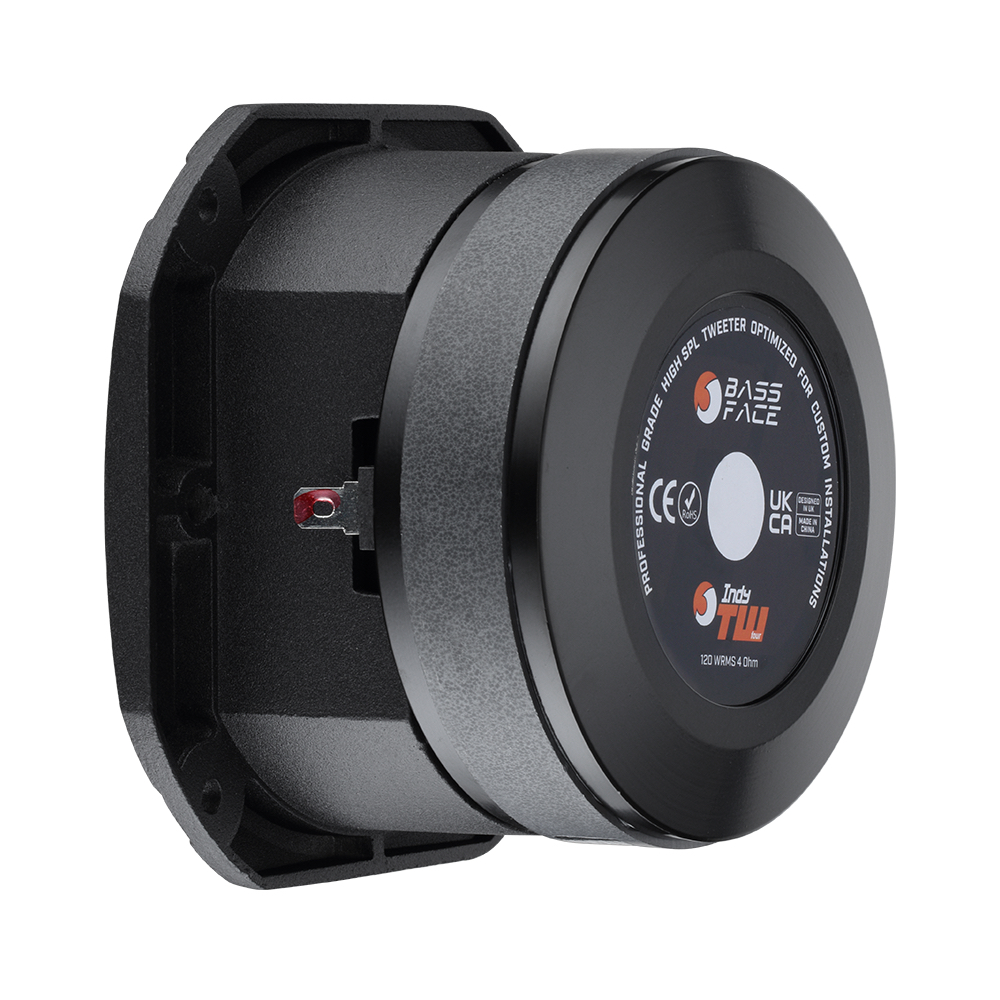

Indy TW/Four 4Ohm 2x120w RMS High SPL Slot Type Tweeters (Pair)


World RRP: £71.95

Category: Tweeters & Horns

Product code: IndyTW/Four

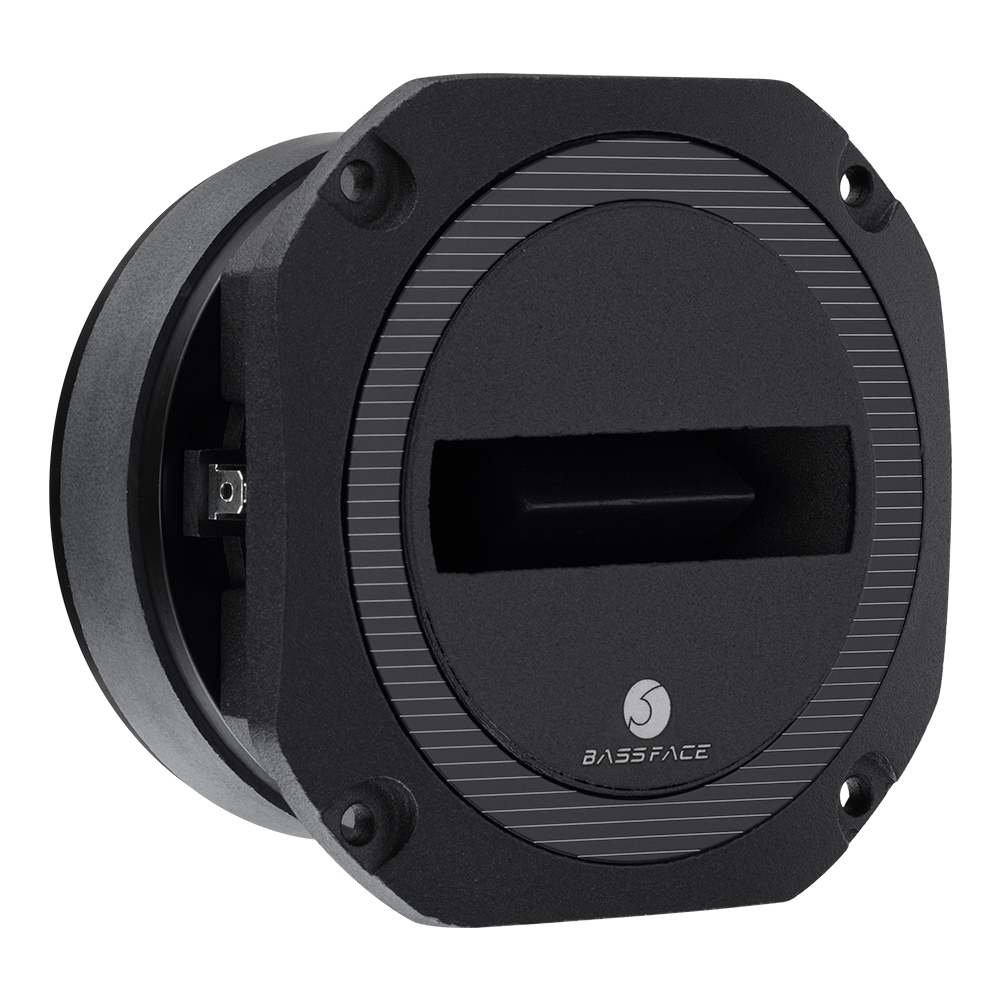

Taking over from the old XSPLT.1 slot tweeter this new, custom tooled driver has evolved into the ideal partner for large door builds and arrays. Featuring the ever popular european slot design for directionality and a powerful Y35 magnet, this driver has a wide response and will keep up in even demanding situations. Comes complete with a pair of capacitors to allow immediate connection to a full range source.

Technical Highlights


  • Extreme Slot Type Tweeter, 120W RMS Power Handling Each Driver
  • Spade Terminals, 58mm Mount Depth, 115.5mm Overall Diameter
  • Huge 37.8mm (1.5") 4 Ohm VC With 100db dB/1Wm Sensitivity
  • Frequency Range 2500Hz > 20000Hz, Aluminium Diaphragm

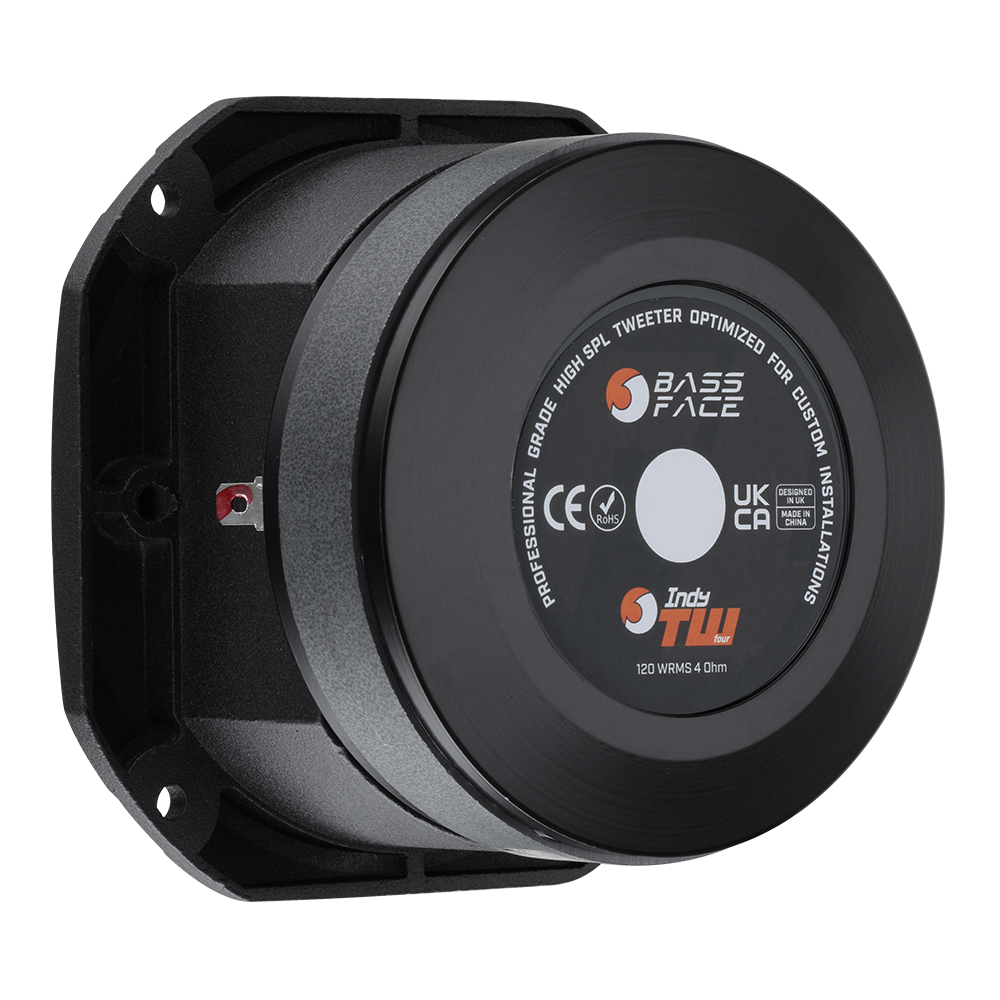

  • Extreme Performance 12.3Oz Y35 Magnet

Series


Indy

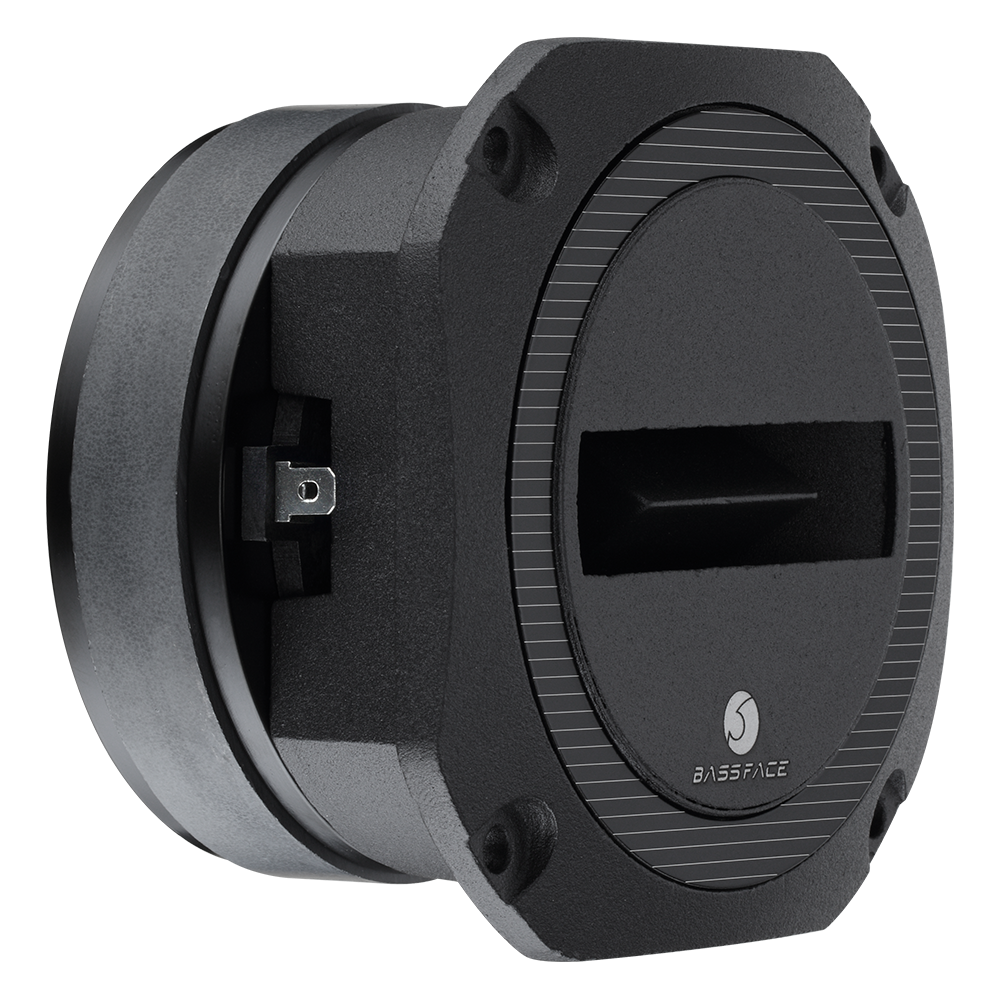

What's In The Box?


  • 2 x Tweeter
  • 2 x Capacitor Crossover
  • 1 x Data Sheet
  • 1 x Bassface Sticker
What's In The Box?

Version History


Re-engineered from the outgoing XSPLT.1 model, launched Q2 2022 in Jiaxing.

Key Facts


Product Category Tweeters & Horns
Version 1
Series Indy
First Added 13/09/2021
Last Modified 03/01/2024
Barcode 5060905110483
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 1390
Product Height (mm) 67
Product Length (mm) 103
Product Width (mm) 103
Complete Product Pack Weight (g) 1490
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Pair

Tweeter Data


Voice Coil Diameter (mm) 37.8
Overall Depth (mm) 67
Mounting Depth (mm) 56
Overall Diameter (mm) 103
Magnet Diameter (mm) 90
Installation Cut-out Diameter (mm) 107
Magnet Weight (Oz) 12.3
Magnet Type Y35
System Maximum Power (Watts) (Using Pair Of Tweeters Not Necessarily Included) 480
System Maximum Power (Watts) (Single Tweeter) 240
System RMS (Watts) (Single Tweeter, 4Khz/12DB Oct X Over) 120
Frequency Response (Hz) 2500>20000
Impedance (Ohm) 4
Sensitivity (db/1Wm) 100
