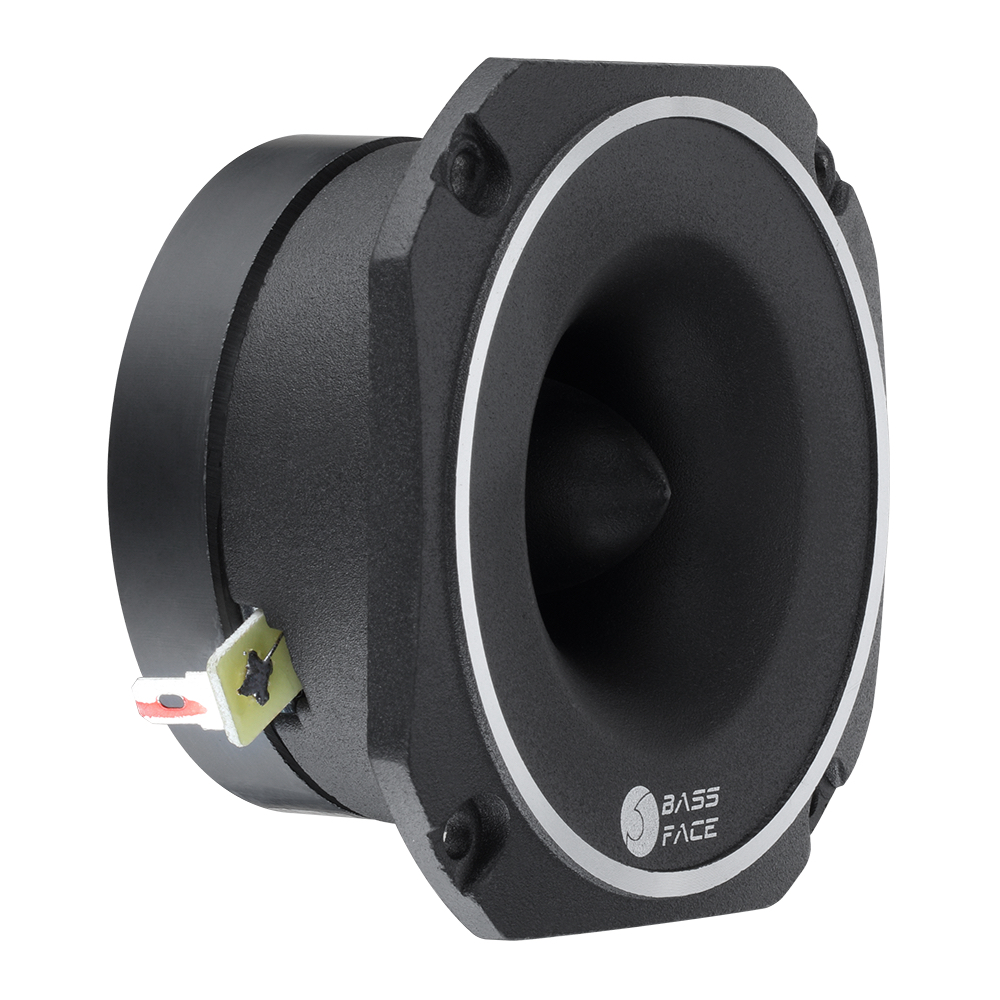

Indy TW/One 4Ohm 120w RMS High SPL Bullet Type Tweeter (Single)


World RRP: £26.95

Category: Tweeters & Horns

Product code: IndyTW/One

Robust and powerful bullet tweeter featuring a 25mm VC and 6.5 Oz Y35 magnet. This sweet, accurate and very sensitive (102db) tweeter plays up very high and is perfect for high energy music. Comes complete with a pair of capacitors to allow immediate connection to a full range source.

Technical Highlights


  • Great SPL & Clean High Notes, 120W RMS Power Handling Each Driver
  • Spade Terminals, 41mm Mount Depth, 98x98mm Overall Size
  • Large 25.4mm (1") 4 Ohm VC With 102db dB/1Wm Sensitivity
  • Frequency Range 3000Hz > 24000Hz, Aluminium Diaphragm
  • High Performance 6.5Oz Y35 Magnet

Series


Indy

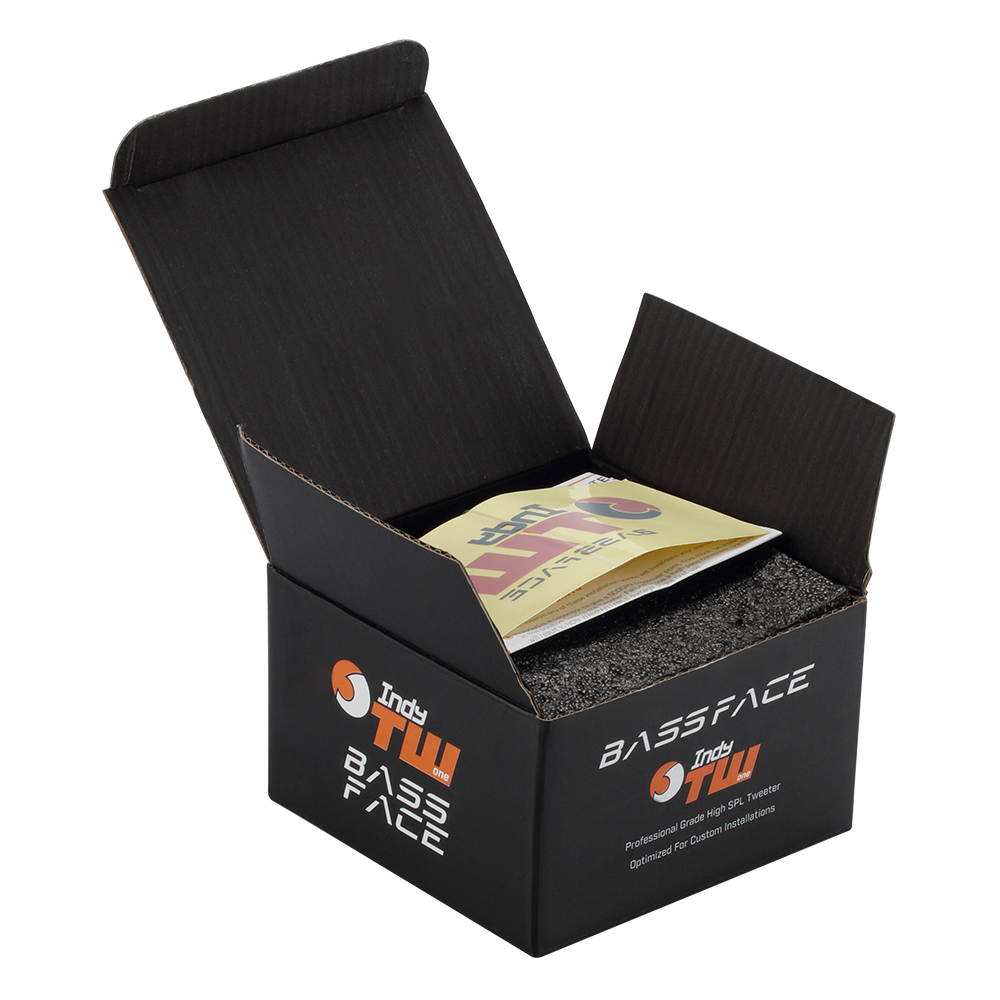

What's In The Box?


  • 1 x Tweeter
  • 1 x Capacitor Crossover
  • 1 x Data Sheet
  • 1 x Bassface Sticker
What's In The Box?

Version History


Brand new model launched Q2 2022 in Jiaxing.

Key Facts


Product Category Tweeters & Horns
Version 1
Series Indy
First Added 13/09/2021
Last Modified 03/01/2024
Barcode 5060905110421
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 580
Product Height (mm) 49
Product Length (mm) 90.5
Product Width (mm) 87
Complete Product Pack Weight (g) 680
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Tweeter Data


Voice Coil Diameter (mm) 25.4
Overall Depth (mm) 48
Mounting Depth (mm) 41
Overall Diameter (mm) 87x87
Magnet Diameter (mm) 70
Installation Cut-out Diameter (mm) 64x64
Magnet Weight (Oz) 6.5
Magnet Type Y35
System Maximum Power (Watts) (Using Pair Of Tweeters Not Necessarily Included) 480
System Maximum Power (Watts) (Single Tweeter) 240
System RMS (Watts) (Single Tweeter, 4Khz/12DB Oct X Over) 120
Frequency Response (Hz) 3000>24000
Impedance (Ohm) 4
Sensitivity (db/1Wm) 102
