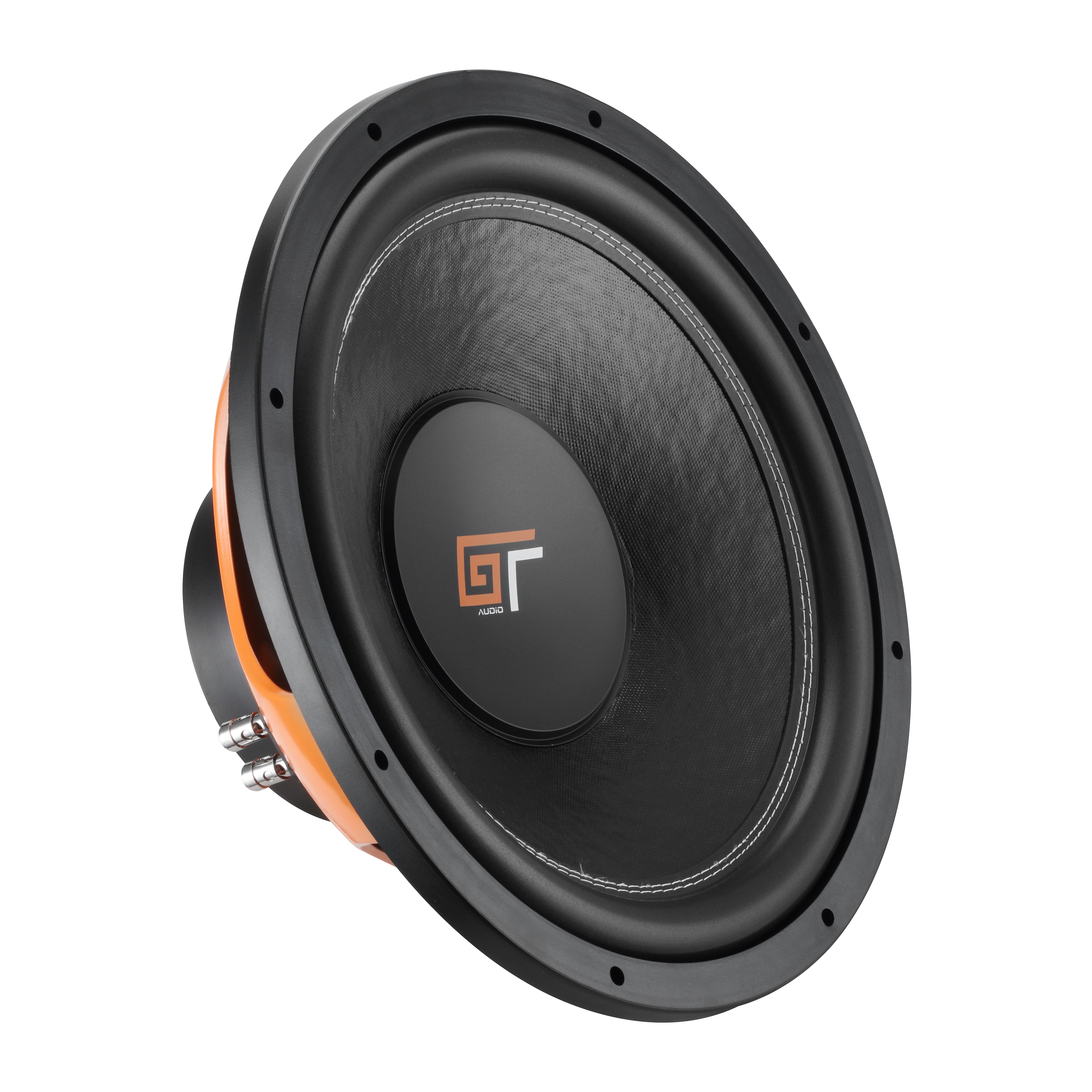

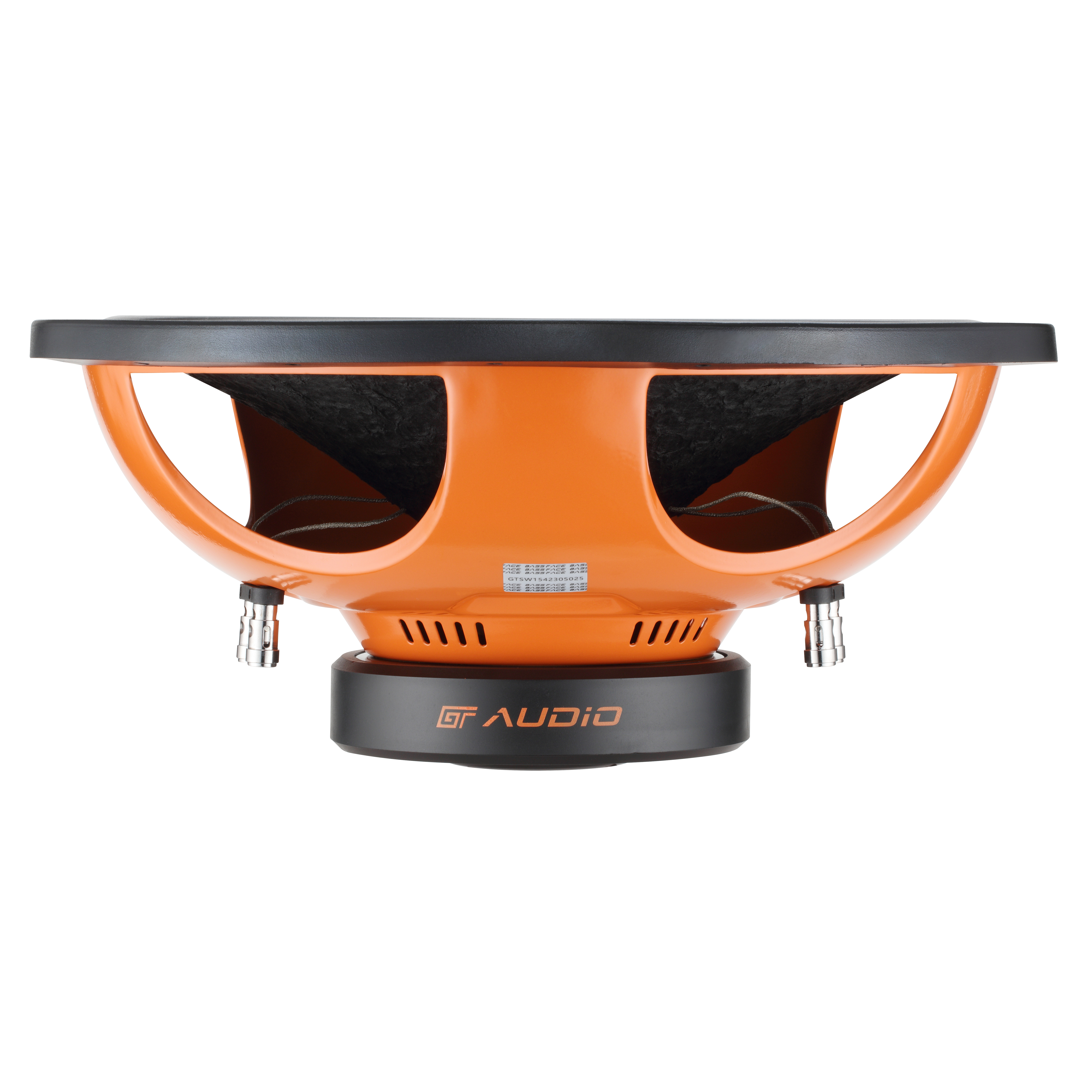

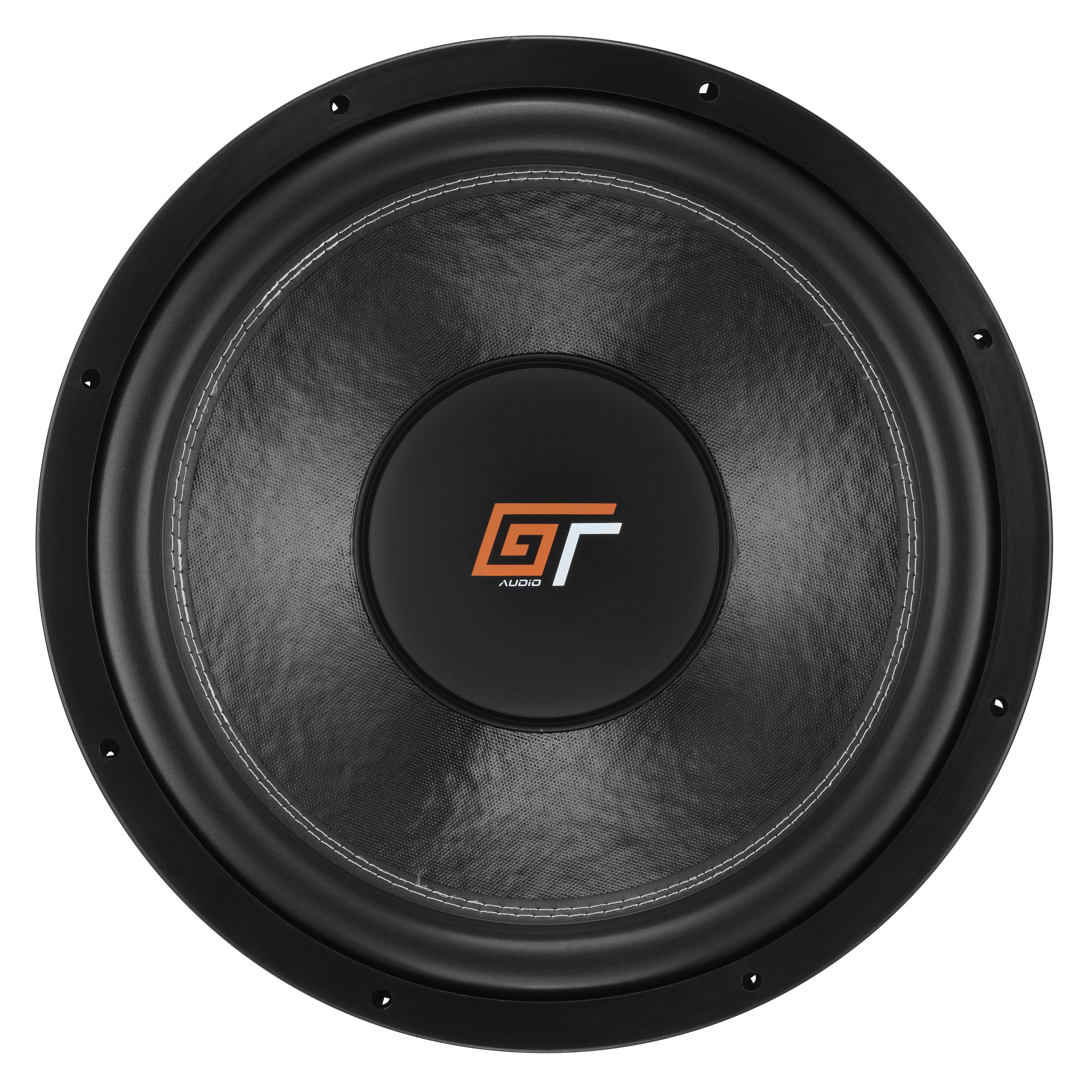

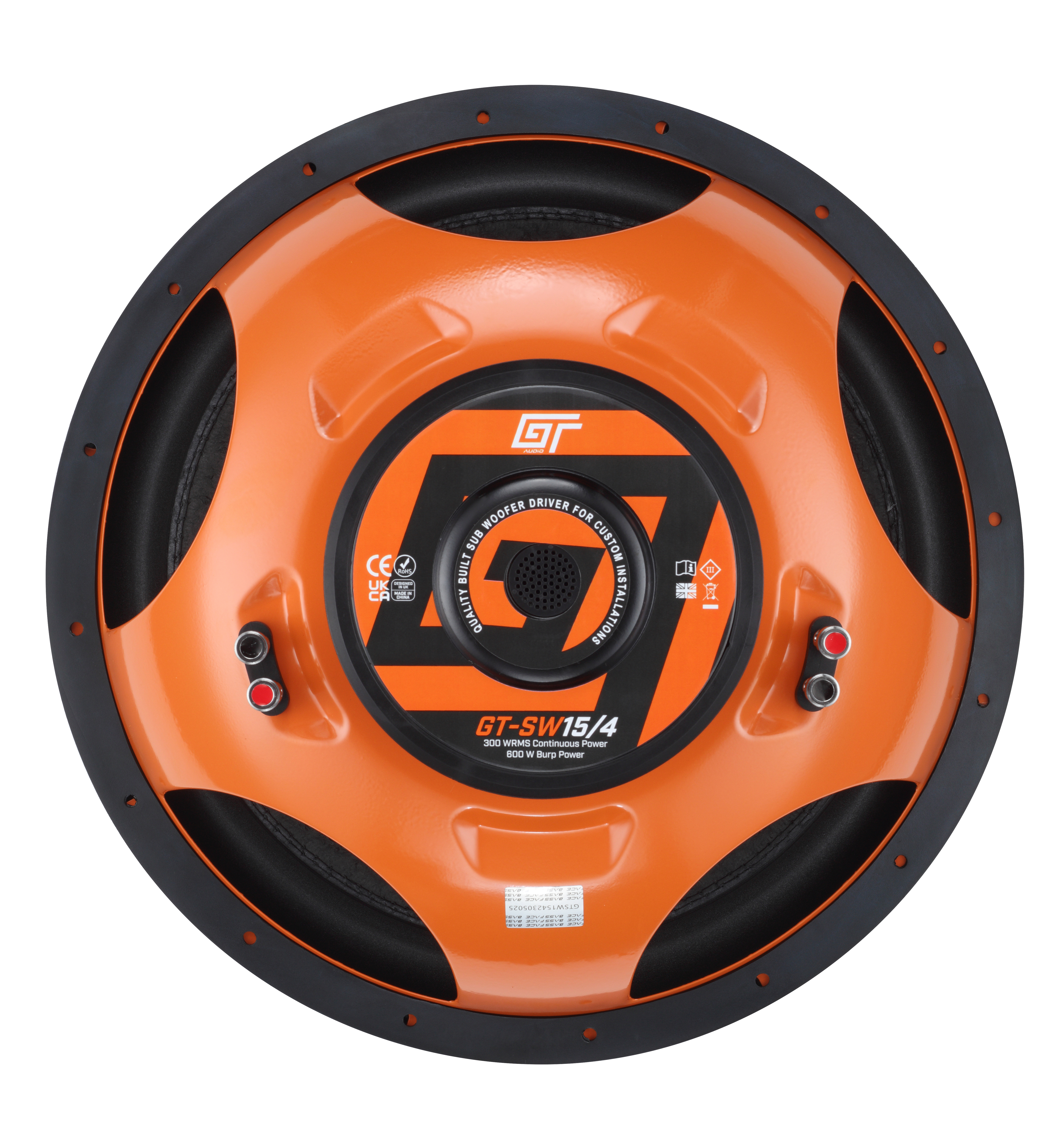

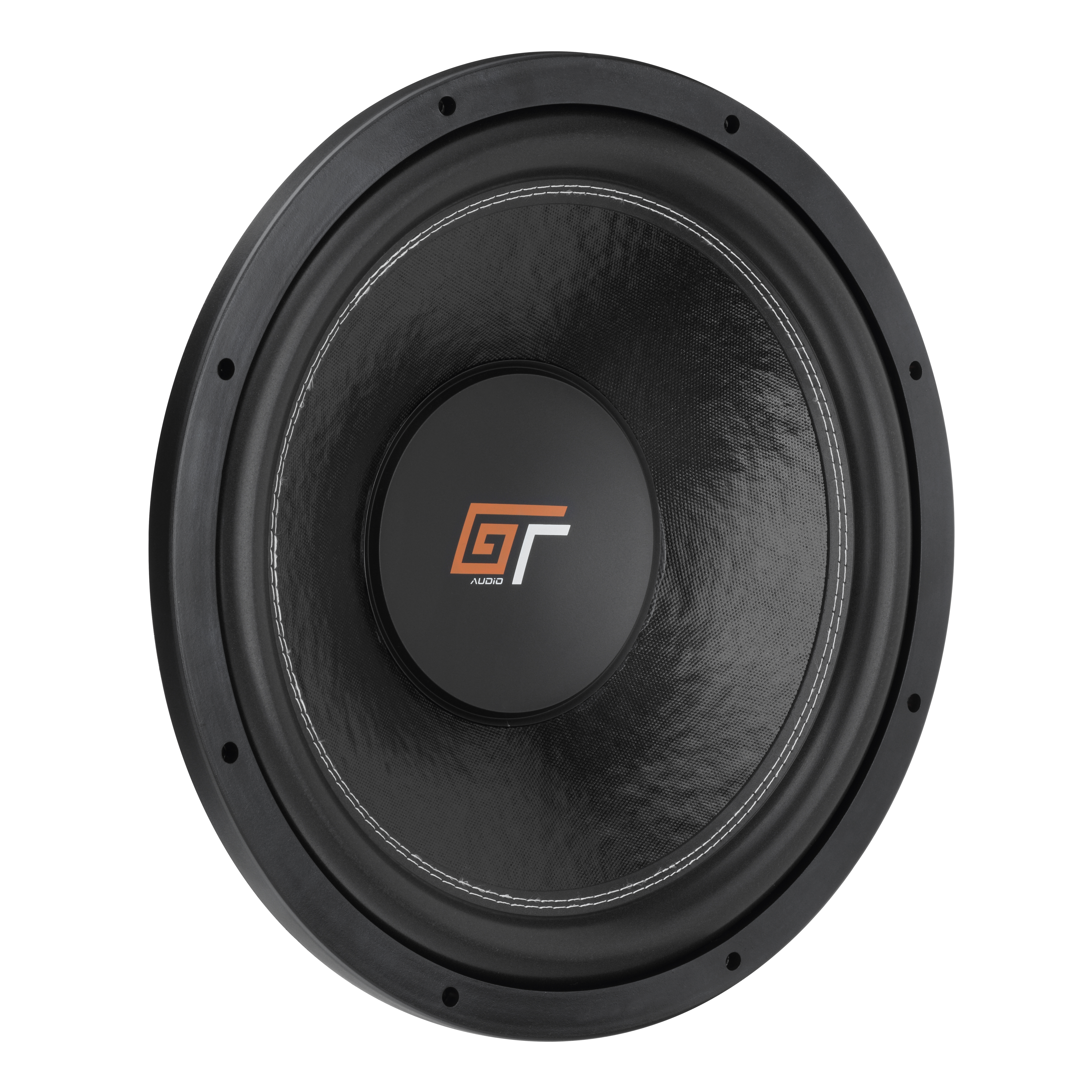

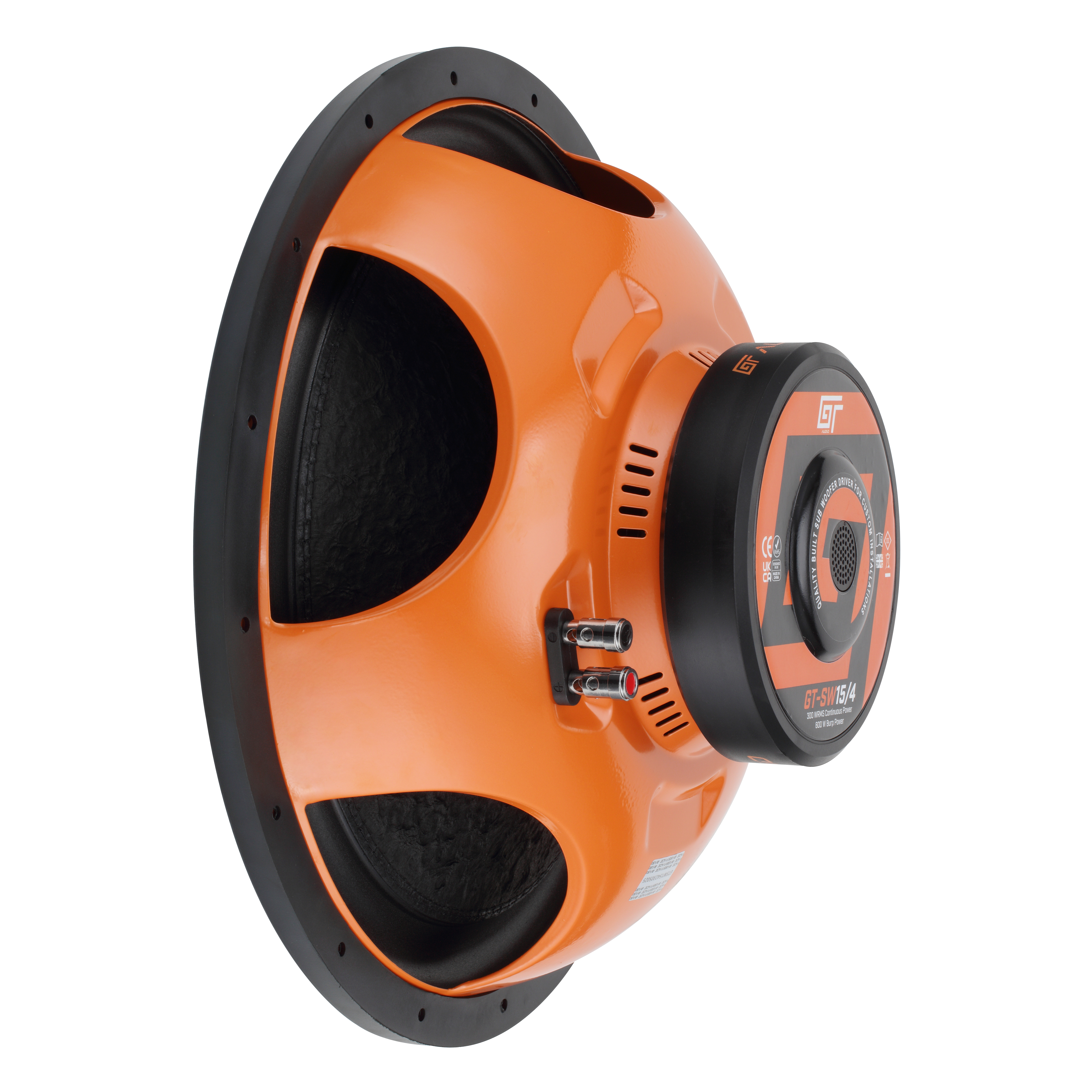

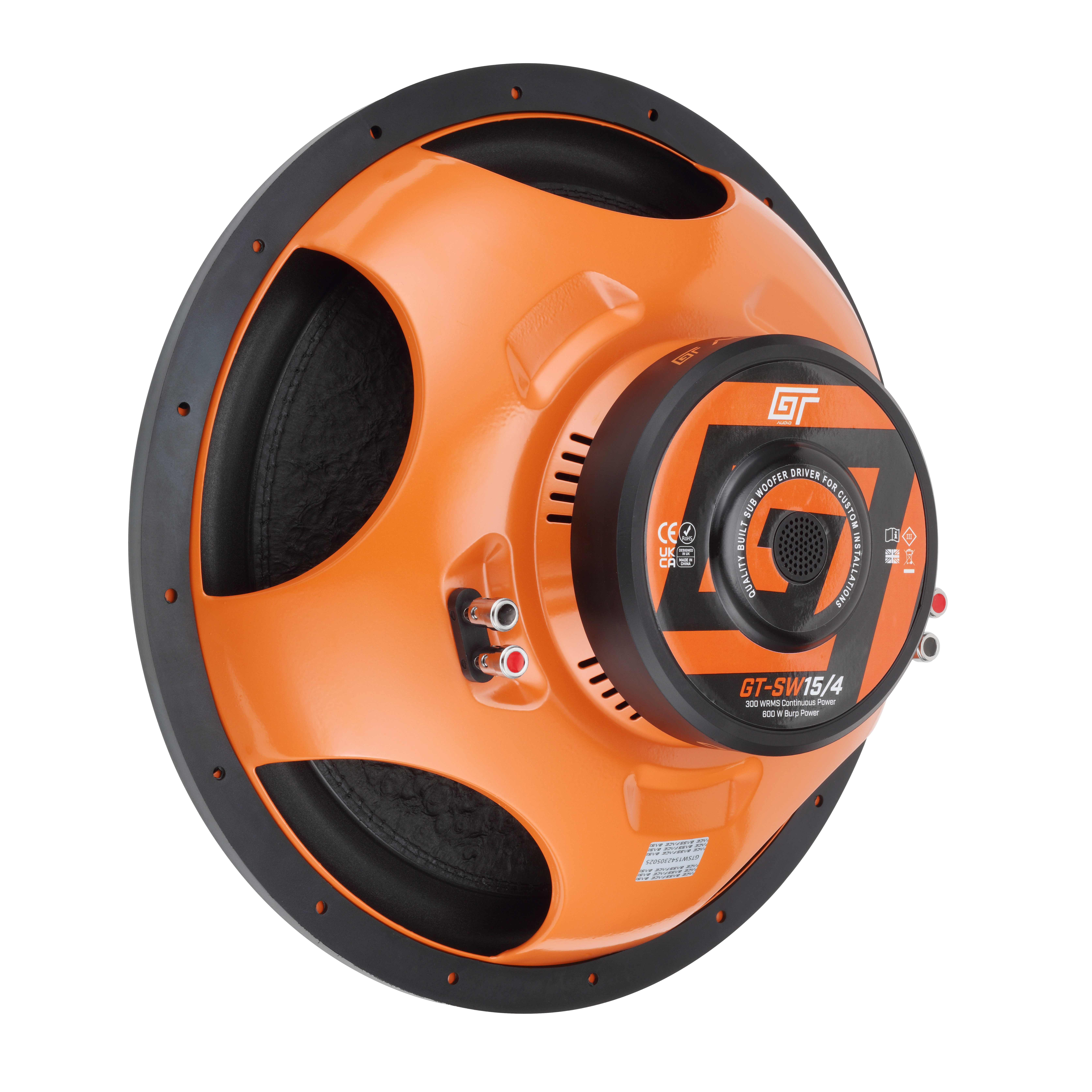

GT Audio GT-SW15/4 15'' 38cm 2x4Ohm DVC Subwoofer 300w RMS (Sealed/Ported Enclosures)

World RRP: £61.95


Product code: GT-SW15/4

High quality dual voice coil subwoofer offering performance without excessive cost. Lightweight construction for efficient performance even when powered from modest amplifiers. Extremely musical bass, by virtue of the complete lack of mass. As a subwoofer is made more and more powerful the heavier and heavier resultant cone and motor weight blunts the musicality, creating the familiar one note bass that we seem to be used to today. The GT-SW range is a breath of fresh air and delivers back that exciting, hard, driving sound. Unbeatable bass performance at the price point.

Technical Highlights

  • 300W Continuous RMS / 600W Burp Power Handling
  • 2.5 Inch Dual 4 Ohm Round Wire 4 Layer Voice Coil
  • Works In Free Air Or Ported/Sealed Enclosures 6.88 Cuft
  • Linear Medium Compliance 1x1 Spider Pack
  • Smooth Foam Surround & Non Pressed Paper Cone
  • High Quality Y25 Magnet 156x20mm
Technical Highlights


GT Audio

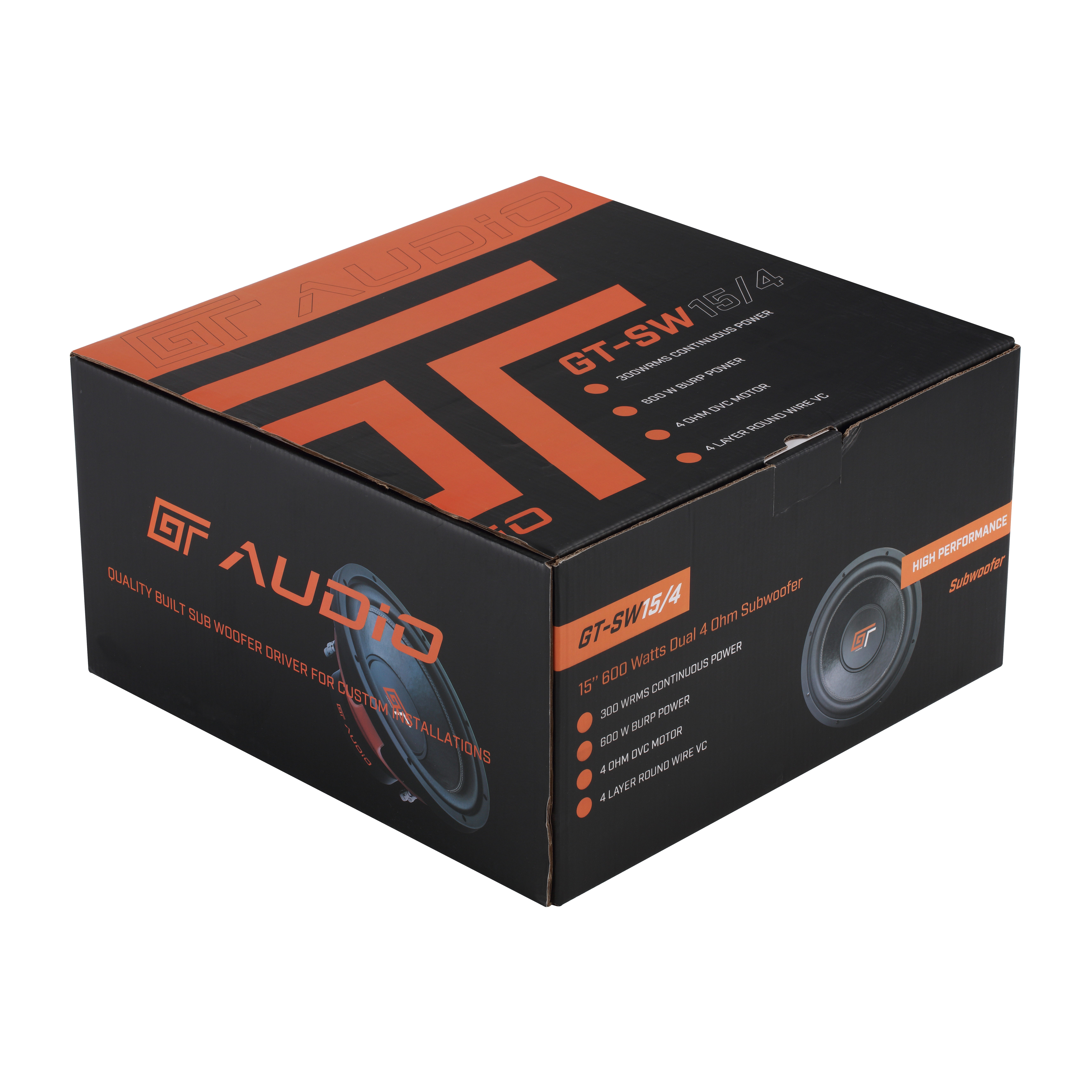

What's In The Box?

What's In The Box?
  • 1 x Subwoofer
  • 1 x Data Sheet
  • 1 x GT Audio Sticker

Version History

Developed over an extended period and brought to market Q3 2023 for the launch of the GT Model range.

Key Facts

Product Category Subwoofers
Version 1
Series GT Audio
First Added 12/06/2023
Last Modified 25/01/2024
Barcode 5060905111435
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 4500
Product Height (mm) 175
Product Length (mm) 390
Product Width (mm) 390
Complete Product Pack Weight (g) 5000
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Speaker Data

Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 600
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 300
Overall Diameter (mm) 390
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 158
Installation Cut-Out Diameter (mm) 356
Overall Depth (mm) 175
Mounting Depth (mm) 155
Front Protrusion From Mounting Plane (mm) 20
Recommended Frequency Range (Hz) 30>500
Impedance (Ohm) (Nominal) 4+4
Sensitivity (db/1Wm) 91
Total Magnet Weight (Oz) 48
Magnet Size (mm) 156x20
Magnet Type Y25
Magnet Qty 1
Top Plate thickness (mm) 8
Back Plate Thickness (mm) 8
Optimum Bass Enclosure Type Ported/Sealed
Recommended Bass Enclosure Volume (CuFt) 6.88
Recommended Bass Enclosure Tuning Frequency (Hz) 32
Voice Coil Former Spec Aluminium
Voice Coil Type Copper Round Wire
Voice Coil External Diameter (mm) 63.92
Voice Coil Internal Diameter (mm) 63.5
Voice Coil Winding Height (mm) 20
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 176
Spider Design 1x1
Surround Smooth
Surround Material Foam
Tinsel Wire Single
Terminal Spade
