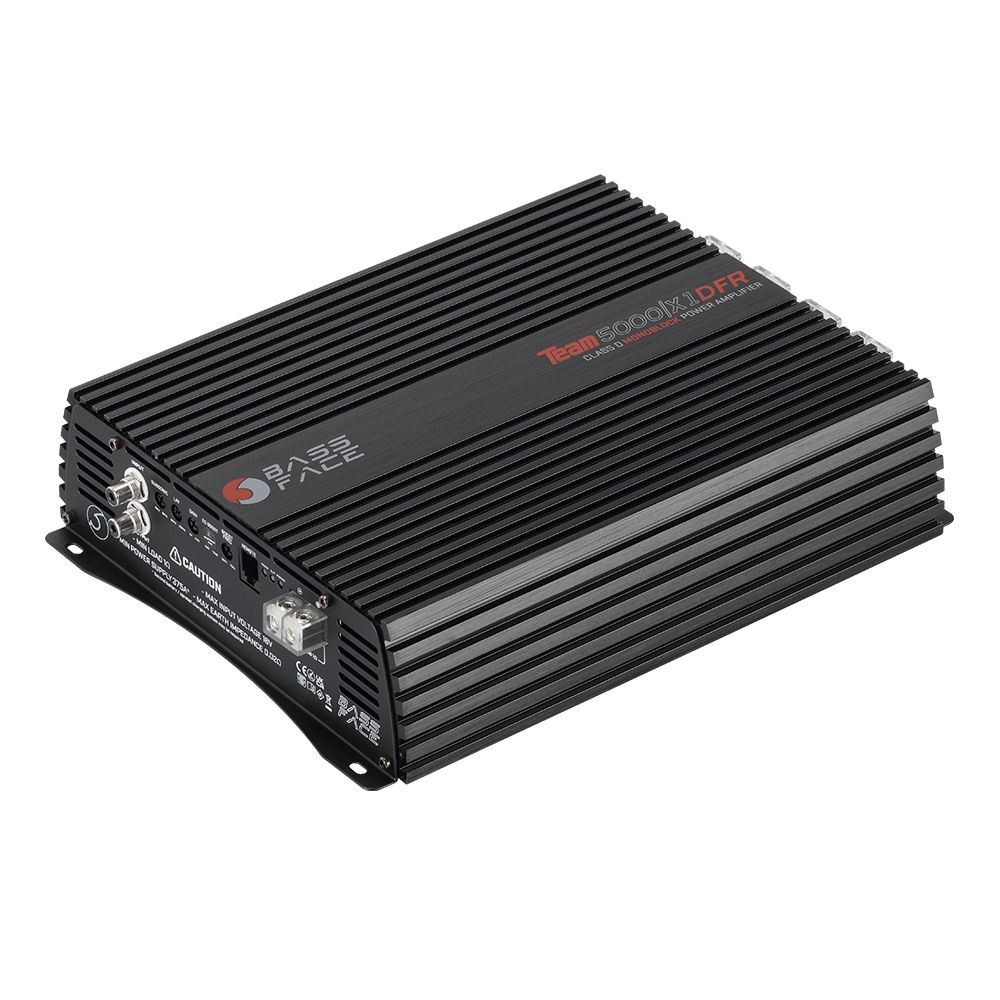

Team 5000/X1DFR Class D Monoblock Full Range Amplifier 5000w RMS


World RRP: £341.95

Category: AMPLIFIERS

Product code: Team5000/x1DFR

These are no details spared high performance amplifiers using transformer class technology allowing for a compact design while offering huge power. Featuring a sleek satin finish the new Team Series delivers ultimate performance in an unbelievably compact package. Do not let the size of these amplifiers fool you – the current requirements for this level of output are considerable. Installation using the exactly correct cables, batteries and alternator is essential. The amplifiers offer wide crossover adjustments and will accommodate high power RCA and main voltage input. Top quality RCA terminals, power connections and speaker terminal blocks are standard, as is individual factory burn in per amplifier and QC stamp with serial number. The amplifiers are supplied in high quality packaging for protection, and come with printed instructions and comprehensive data sheets as well as having additional important information printed on the body of the units. Finally, output power is rated correctly - what you read is what you get - the Team Series offers stellar performance at an affordable price. This is a full range model, ideal for running arrays of mid range speakers.

Technical Highlights


  • Class D Transformer - Ultimate Power Full Range Mono Amplifier
  • Power Output 1x5000W RMS @ 1 Ohm Load
  • Power Output 1x3200W RMS @ 2 Ohm Load
  • Power Output 1x1700W RMS @ 4 Ohm Load
  • 6.5V Stable RCA Input + Line Output
  • 80>20000Hz LPF / 15>80Hz HPF Crossovers
  • Minimum Power Supply 375A via 2x 0AWG Inputs
  • 20>22000Hz Response / 88dB Signal To Noise Ratio
  • 16.2V Capable Power Input
  • Included Bass Remote & Cable
Technical Highlights

Series


Team

What's In The Box?


What's In The Box?
  • 1 x Amplifier
  • 1 x Bass Remote Control
  • 1 x Hardware Pack
  • 1 x Bassface Sticker
  • 1 x Documentation Set

Version History


7/8/23 Detail change made to online and downloadable datasheet in relation to the subsonic filter specification, so that the paper data sheet in existing stock does not match anymore. The changes are very small and insignificant, but please treat the online resource as the correct information.

Key Facts


Product Category Amplifiers
Version 1
Series Team
First Added 17/11/2022
Last Modified 26/01/2024
Barcode 5060905111138
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 4302
Product Height (mm) 66.5
Product Length (mm) 265
Product Width (mm) 225
Complete Product Pack Weight (g) 4780
Operating Temperature (Degrees Celsius) 0-50
Weatherproof Rating In-Car Only
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Amplifier Data


Genuine Useable RMS Power, 4Ohm (Watts), < 1%THD, 14v 1700x1
Genuine Useable RMS Power, 2Ohm (Watts), < 1%THD, 14v 3200x1
Genuine Useable RMS Power, 1Ohm (Watts), < 1%THD, 14v 5000x1
Frequency Response (Hz) 20>22000
Signal To Noise Ratio (db) 88
LPF (Hz) 80>20000
Bass Boost (Db) 0>12
Boost Frequency (Hz) 35>70
Subsonic Filter (Hz) 15>80
Audio Signal Input Voltage (V) 0.22>6.5
LPF Slope (Db/Oct) 12
Subsonic Filter Slope (Db/Oct) 12
Amplifier Topology Class D Transformer
Maximum Input Voltage (V) 16.2
Fuse Rating (Amps) Unfused
Power Wire Input Gauge (AWG) 2x 0
Minimum Recommend Final Load Per Channel (Ohms) 1 Mono
Input Impedance (KOhms) 20
